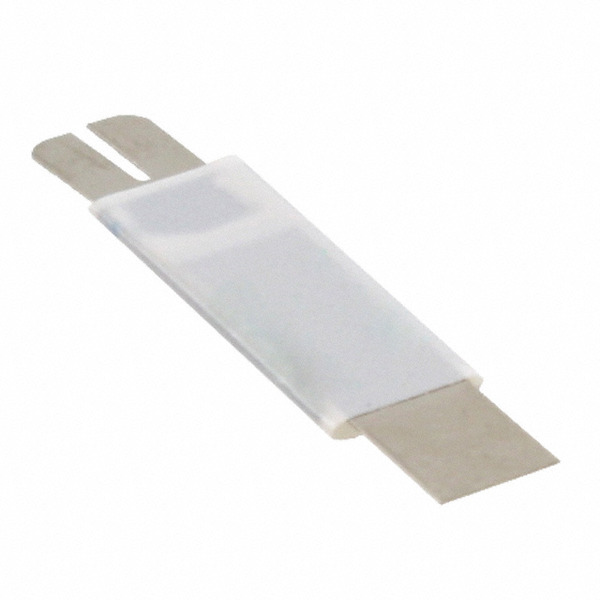

SRP175SF
Hamlin / Littelfuse
Images are for reference only.
See Product Specifications for product details.
Buy SRP175SF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SRP175SF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SRP175SF |
|---|---|
| Manufacturer | Littelfuse |
| Description | Ptc Reset Fuse 15V 1.75A Strap |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.236 | $0.213 | $0.192 | $0.188 | ||
Specifications
Data sheet
| Voltage - Max: | 15V |
|---|---|
| Type: | Polymeric |
| Time to Trip: | 5s |
| Thickness (Max): | 0.039" (1.00mm) |
| Size / Dimension: | 0.866" L x 0.199" W (22.00mm x 5.05mm) |
| Series: | PolySwitch®, SRP |
| Resistance - Post Trip (R1) (Max): | 120 mOhms |
| Resistance - Initial (Ri) (Min): | 50 mOhms |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Strap |
| Other Names: | C29571-000 |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | User Defined |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Spacing: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | - |
| Detailed Description: | Polymeric PTC Resettable Fuse 15V 1.75A Ih User Defined Strap |
| Current - Trip (It): | 3.8A |
| Current - Max: | 100A |
| Current - Hold (Ih) (Max): | 1.75A |
| Approvals: | CSA, TUV, UL |
| Email: | info@cjjhk.com |
Introduce
We can supply SRP175SF, use the request quote form to request SRP175SF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SRP175SF.The price and lead time for SRP175SF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SRP175SF.We look forward to working with you to establish long-term relations of cooperation
