SPM5020T-2R2M
TDK Corporation

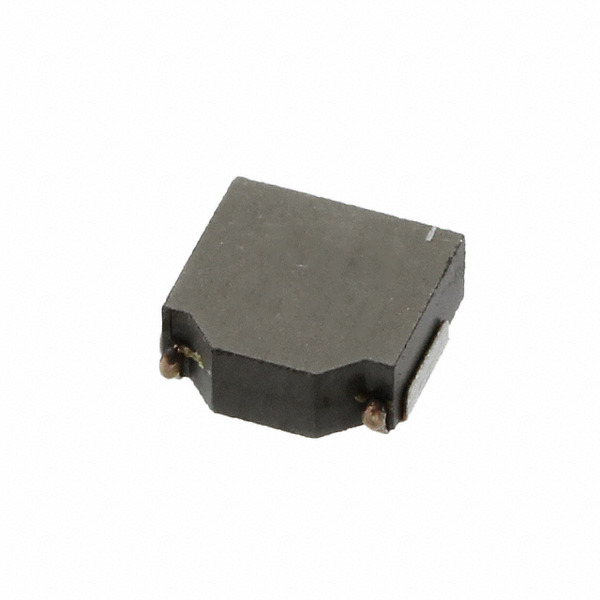

Images are for reference only.
See Product Specifications for product details.
Buy SPM5020T-2R2M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SPM5020T-2R2M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SPM5020T-2R2M |
|---|---|
| Manufacturer | TDK |
| Description | Ind Power Shielded Wirewound 2.2uH 20% 100KHz Metal 4.6A T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.893 | $0.806 | $0.727 | $0.711 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Shielding: | Shielded |
| Series: | SPM |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 445-172383-2 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Metal |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 2.2µH |
| Height - Seated (Max): | 0.079" (2.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 2.2µH Shielded Wirewound Inductor 4.2A 51.4 mOhm Max Nonstandard |
| DC Resistance (DCR): | 51.4 mOhm Max |
| Current Rating: | 4.2A |
| Current - Saturation: | 5.5A |
| Email: | info@cjjhk.com |
Introduce
We can supply SPM5020T-2R2M, use the request quote form to request SPM5020T-2R2M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SPM5020T-2R2M.The price and lead time for SPM5020T-2R2M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SPM5020T-2R2M.We look forward to working with you to establish long-term relations of cooperation
