SPA08AB
C&K

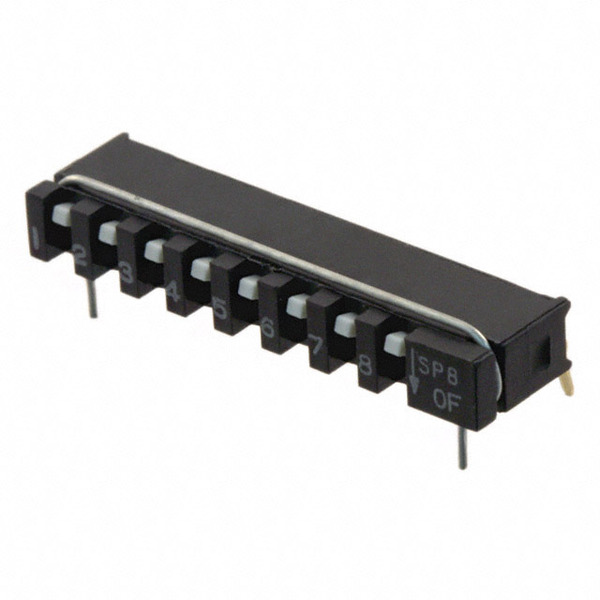

Images are for reference only.
See Product Specifications for product details.
Buy SPA08AB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SPA08AB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SPA08AB |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH SLIDE DIP SPST 10MA 20V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.76 | $4.549 | $4.342 | $4.135 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $3.722 | $3.308 | $3.205 | $2.895 | ||
Specifications
Data sheet
| Washable: | Yes |
|---|---|
| Voltage Rating: | 20VDC |
| Termination Style: | PC Pin |
| Series: | SPA |
| Pitch: | 0.100" (2.54mm), Full |
| Packaging: | Tube |
| Other Names: | *SPA08AB CKN9443 |
| Operating Temperature: | -30°C ~ 60°C |
| Number of Positions: | 8 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 1,000 Cycles |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Length: | 0.942" (23.92mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.169" (4.30mm) |
| Features: | - |
| Electrical Life: | 1,000 Cycles |
| Detailed Description: | Dip Switch SPST 8 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC |
| Current Rating: | 10mA |
| Contact Material: | Beryllium Copper |
| Contact Finish: | Gold |
| Circuit: | SPST |
| Body Material: | Polyphenylene Sulfide (PPS) |
| Actuator Type: | Slide (Standard) |
| Actuator Level: | Flush, Recessed |
| Email: | info@cjjhk.com |
Introduce
We can supply SPA08AB, use the request quote form to request SPA08AB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SPA08AB.The price and lead time for SPA08AB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SPA08AB.We look forward to working with you to establish long-term relations of cooperation
