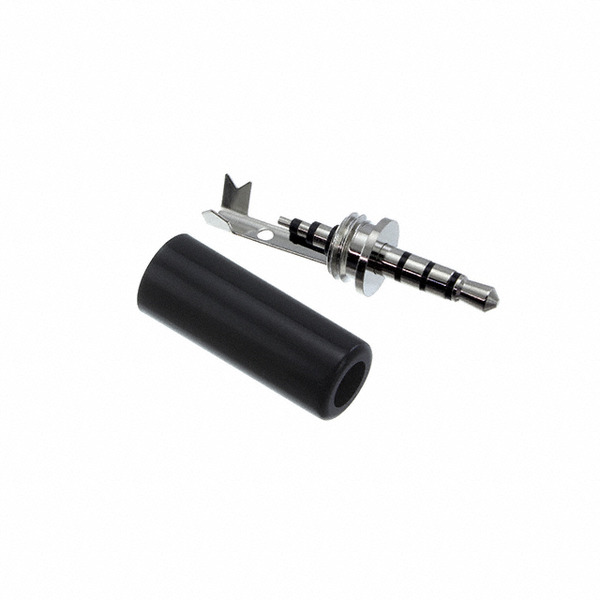

SP-3540A
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy SP-3540A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SP-3540A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SP-3540A |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | AUDIO PLUG, 3.5 MM, STRAIGHT, 4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.08 | $1.887 | $1.771 | $1.694 | $1.617 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.463 | $1.348 | $1.155 | $1.078 | ||
Specifications
Data sheet
| Voltage - Rated: | 12VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder |
| Signal Lines: | Stereo (4 Conductor, TRRS) |
| Shielding: | Unshielded |
| Series: | - |
| Panel Hole Size: | - |
| Packaging: | Bulk |
| Other Names: | 102-4779 |
| Operating Temperature: | -25°C ~ 70°C |
| Number of Positions/Contacts: | 4 Conductors, 4 Contacts |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Length/Depth: | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Does Not Contain Switch |
| Insulation Color: | Black |
| Industry Recognized Mating Diameter: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes: | 2 pcs - 1 Connector, 1 Cover |
| Housing Material: | Acrylonitrile Butadiene Styrene (ABS) |
| Gender: | Male |
| Features: | Cover |
| Detailed Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder |
| Current Rating: | 1A |
| Contact Material - Plating: | Nickel |
| Contact Material: | Brass |
| Connector Type: | Phone Plug |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening: | 0.217" (5.50mm) |
| Body Material: | Brass |
| Body Color: | Silver, Black |
| Actual Diameter: | 0.126" (3.20mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply SP-3540A, use the request quote form to request SP-3540A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SP-3540A.The price and lead time for SP-3540A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SP-3540A.We look forward to working with you to establish long-term relations of cooperation
