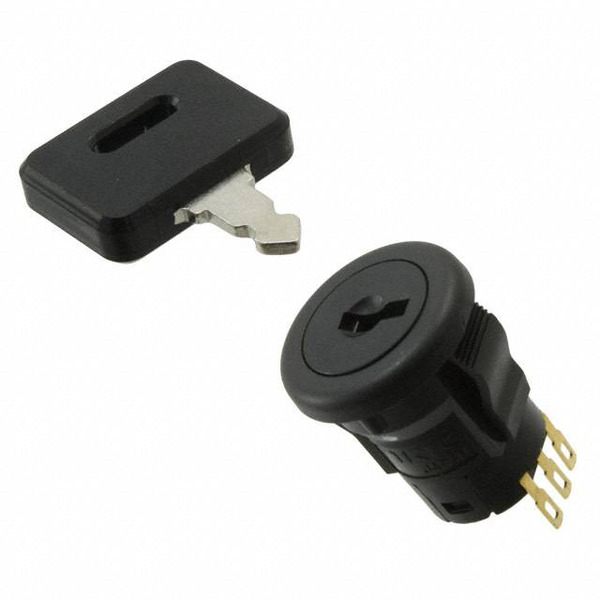

SK14DGMG01
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy SK14DGMG01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SK14DGMG01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SK14DGMG01 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH KEYLOCK SP3T 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $12.00 | $11.40 | $10.80 | $10.50 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.60 | $8.70 | $8.40 | $8.10 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 28V |
| Termination Style: | Solder Lug |
| Switch Function: | On-On-On |
| Series: | SK |
| Panel Cutout Dimensions: | Circular - 14.50mm Dia |
| Other Names: | 360-2669 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 3 |
| Mounting Type: | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 30,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Key Removable Positions: | All |
| Features: | Antistatic |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Keylock Switch 3 Position SP3T 0.4VA (AC/DC) 28VAC 28VDC Panel Mount, Snap-In |
| Depth Behind Flange: | 22.70mm |
| Current Rating: | 0.4VA (AC/DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Beryllium Copper |
| Contact Finish: | Gold |
| Circuit: | SP3T |
| Angle of Throw: | 45° |
| Actuator Type: | Flat Key |
| Email: | info@cjjhk.com |
Introduce
We can supply SK14DGMG01, use the request quote form to request SK14DGMG01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SK14DGMG01.The price and lead time for SK14DGMG01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SK14DGMG01.We look forward to working with you to establish long-term relations of cooperation
