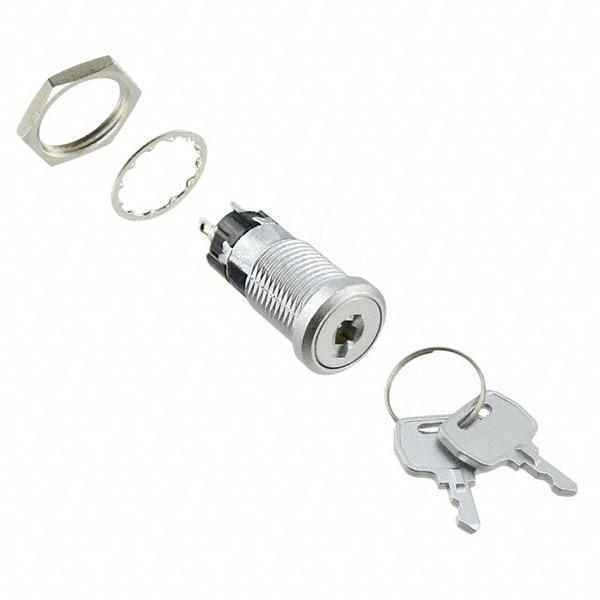

SK12BAW01
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy SK12BAW01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SK12BAW01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SK12BAW01 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH KEYLOCK 2POS SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.06 | $12.407 | $11.754 | $11.428 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $10.448 | $9.469 | $9.142 | $8.816 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Termination Style: | Solder Lug |
| Switch Function: | On-On |
| Series: | SK |
| Panel Cutout Dimensions: | Circular - 12.00mm Dia |
| Other Names: | 360-1460 360-1460-ND 360-1936 SK12BAW01-RO |
| Operating Temperature: | -25°C ~ 70°C |
| Number of Positions: | 2 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 30,000 Cycles |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Key Removable Positions: | 1 only |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Keylock Switch 2 Position SPDT 3A (AC) 125VAC Panel Mount |
| Depth Behind Flange: | 27.00mm |
| Current Rating: | 3A (AC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Silver (Ag) |
| Contact Finish: | - |
| Circuit: | SPDT |
| Angle of Throw: | 90° |
| Actuator Type: | Flat Key |
| Email: | info@cjjhk.com |
Introduce
We can supply SK12BAW01, use the request quote form to request SK12BAW01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SK12BAW01.The price and lead time for SK12BAW01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SK12BAW01.We look forward to working with you to establish long-term relations of cooperation
