SI8642ED-B-IS2
Energy Micro (Silicon Labs)

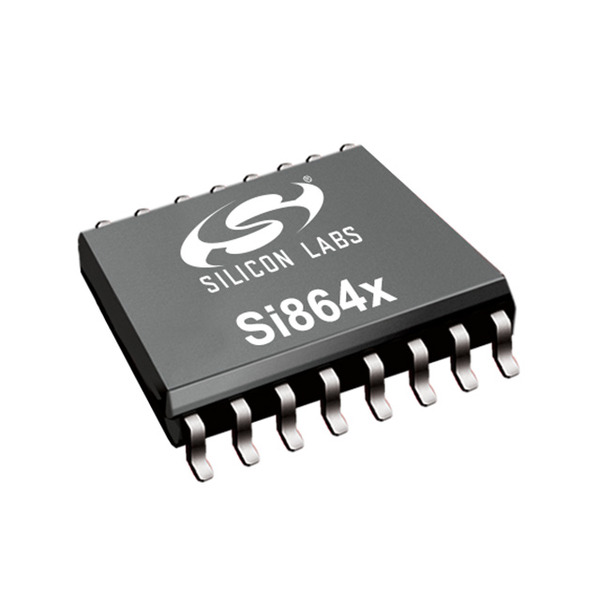

Images are for reference only.
See Product Specifications for product details.
Buy SI8642ED-B-IS2 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SI8642ED-B-IS2 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SI8642ED-B-IS2 |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | QUAD CH 5KV ISOLATOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $3.94 | $3.796 | $3.65 | $3.401 | ||
Specifications
Data sheet
| Voltage - Supply: | 2.5 V ~ 5.5 V |
|---|---|
| Voltage - Isolation: | 5000Vrms |
| Type: | General Purpose |
| Technology: | Capacitive Coupling |
| Supplier Device Package: | 16-SOIC |
| Series: | - |
| Rise / Fall Time (Typ): | 4ns, 4ns |
| Pulse Width Distortion (Max): | 4.5ns |
| Propagation Delay tpLH / tpHL (Max): | 13ns, 13ns |
| Packaging: | Tube |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Other Names: | 336-4217 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Channels: | 4 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Isolated Power: | No |
| Inputs - Side 1/Side 2: | 2/2 |
| Detailed Description: | General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 50kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |
| Data Rate: | 150Mbps |
| Common Mode Transient Immunity (Min): | 50kV/µs |
| Channel Type: | Unidirectional |
| Email: | info@cjjhk.com |
Introduce
We can supply SI8642ED-B-IS2, use the request quote form to request SI8642ED-B-IS2 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SI8642ED-B-IS2.The price and lead time for SI8642ED-B-IS2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SI8642ED-B-IS2.We look forward to working with you to establish long-term relations of cooperation
