SFH6702
Vishay / Semiconductor - Opto Division

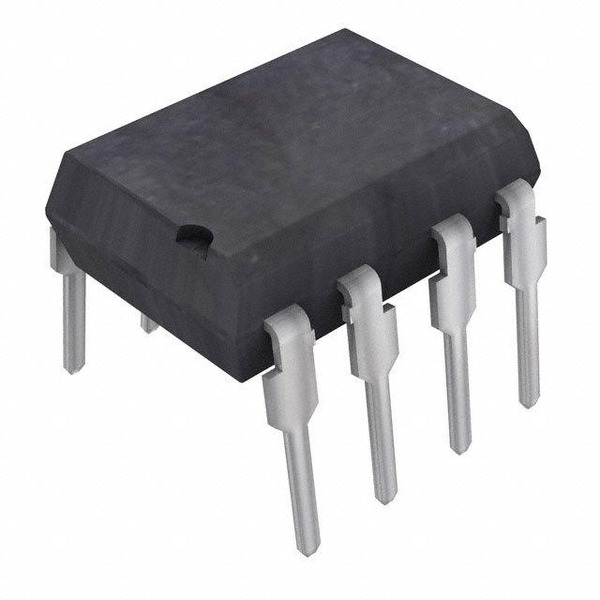

Images are for reference only.
See Product Specifications for product details.
Buy SFH6702 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SFH6702 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SFH6702 |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISO 5.3KV PUSH PULL 8DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 15 V |
|---|---|
| Voltage - Isolation: | 5300Vrms |
| Voltage - Forward (Vf) (Typ): | 1.6V |
| Supplier Device Package: | 8-DIP |
| Series: | - |
| Rise / Fall Time (Typ): | 40ns, 10ns |
| Propagation Delay tpLH / tpHL (Max): | 300ns, 300ns |
| Packaging: | Tube |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Output Type: | Push-Pull, Totem Pole |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2: | 1/0 |
| Input Type: | DC |
| Detailed Description: | Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP |
| Data Rate: | 5MBd |
| Current - Output / Channel: | 25mA |
| Current - DC Forward (If) (Max): | 10mA |
| Common Mode Transient Immunity (Min): | 1kV/µs |
| Email: | info@cjjhk.com |
Introduce
We can supply SFH6702, use the request quote form to request SFH6702 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SFH6702.The price and lead time for SFH6702 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SFH6702.We look forward to working with you to establish long-term relations of cooperation
