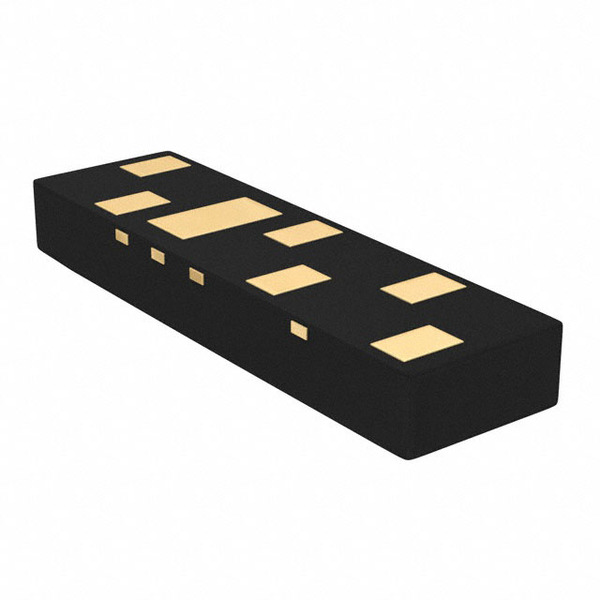

SESD1103Q6UG-0020-090
AMP Connectors / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy SESD1103Q6UG-0020-090 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SESD1103Q6UG-0020-090 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SESD1103Q6UG-0020-090 |
|---|---|
| Manufacturer | TE Connectivity |
| Description | 9.2 V 0.22 pF Surface Mount Uni-Directional Six Channel Silicon ESD Protector |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.005 | $0.907 | $0.818 | $0.801 | ||
Specifications
Data sheet
| Voltage - Reverse Standoff (Typ): | 7V (Max) |
|---|---|
| Voltage - Clamping (Max) @ Ipp: | 9.2V (Typ) |
| Voltage - Breakdown (Min): | 9V (Typ) |
| Unidirectional Channels: | 6 |
| Type: | Zener |
| Supplier Device Package: | 1103/6DFN (2.8x.80) |
| Series: | Automotive, AEC-Q101, SESD, SPA® |
| Power Line Protection: | No |
| Power - Peak Pulse: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 6-XFDFN Exposed Pad |
| Other Names: | F6721TR F6721TR-ND RF3078-000 RF3078000 SESD1103Q6UG-0020-090TR SESD1103Q6UG-0020090 SESD1103Q6UG0020-090 SESD1103Q6UG0020090 |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs): | 2A (8/20µs) |
| Capacitance @ Frequency: | 0.2pF @ 3GHz |
| Applications: | Automotive, HDMI |
| Email: | info@cjjhk.com |
Introduce
We can supply SESD1103Q6UG-0020-090, use the request quote form to request SESD1103Q6UG-0020-090 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SESD1103Q6UG-0020-090.The price and lead time for SESD1103Q6UG-0020-090 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SESD1103Q6UG-0020-090.We look forward to working with you to establish long-term relations of cooperation
