SDQ25-R82-R
Bussmann (Eaton)

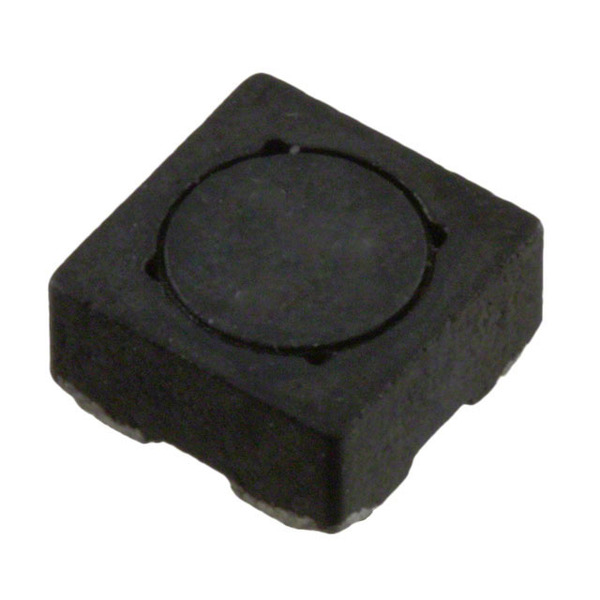

Images are for reference only.
See Product Specifications for product details.
Buy SDQ25-R82-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SDQ25-R82-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SDQ25-R82-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 648NH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2900 pcs | ||||
|---|---|---|---|---|---|
| $1.463 | |||||
Specifications
Data sheet
| Tolerance: | ±30% |
|---|---|
| Size / Dimension: | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Shielding: | Shielded |
| Series: | SDQ |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 2.59µH |
| Inductance - Connected In Parallel: | 648nH |
| Height: | 0.098" (2.50mm) |
| Detailed Description: | Shielded 2 Coil Inductor Array 2.59µH Inductance - Connected in Series 648nH Inductance - Connected in Parallel 22.1 mOhm DC Resistance (DCR) - Parallel 3.37A Nonstandard |
| DC Resistance (DCR) - Series: | 88.3 mOhm |
| DC Resistance (DCR) - Parallel: | 22.1 mOhm |
| Current Saturation - Series: | 2.5A |
| Current Saturation - Parallel: | 5A |
| Current Rating - Series: | 1.68A |
| Current Rating - Parallel: | 3.37A |
| Email: | info@cjjhk.com |
Introduce
We can supply SDQ25-R82-R, use the request quote form to request SDQ25-R82-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SDQ25-R82-R.The price and lead time for SDQ25-R82-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SDQ25-R82-R.We look forward to working with you to establish long-term relations of cooperation
