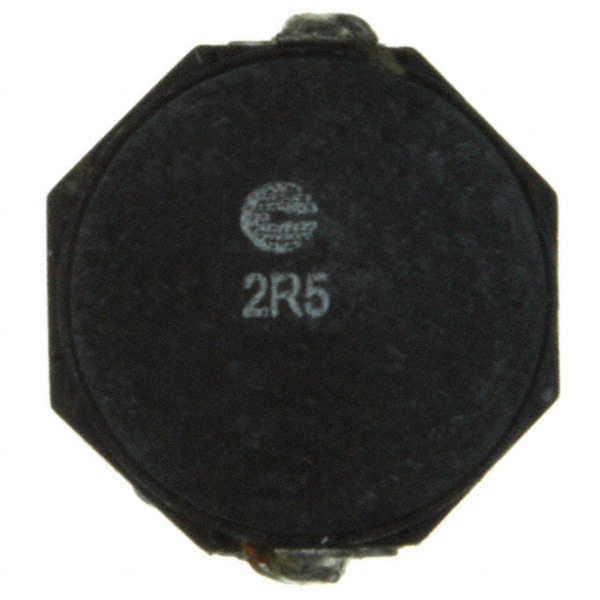

SD8328-2R5-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy SD8328-2R5-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SD8328-2R5-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SD8328-2R5-R |
|---|---|
| Manufacturer | Eaton |
| Description | Inductor Power Shielded Drum Core 2.7u(OCL)H/2.5uH 30% 100KHz Ferrite 6.6A 15.6mOhm DCR T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1280 pcs | ||||
|---|---|---|---|---|---|
| $1.175 | |||||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±30% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Shielding: | Shielded |
| Series: | SD8328 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1490-2 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 2.5µH |
| Height - Seated (Max): | 0.118" (3.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 2.5µH Shielded Wirewound Inductor 6.6A 15.6 mOhm Max Nonstandard |
| DC Resistance (DCR): | 15.6 mOhm Max |
| Current Rating: | 6.6A |
| Current - Saturation: | 4.5A |
| Email: | info@cjjhk.com |
Introduce
We can supply SD8328-2R5-R, use the request quote form to request SD8328-2R5-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD8328-2R5-R.The price and lead time for SD8328-2R5-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD8328-2R5-R.We look forward to working with you to establish long-term relations of cooperation
