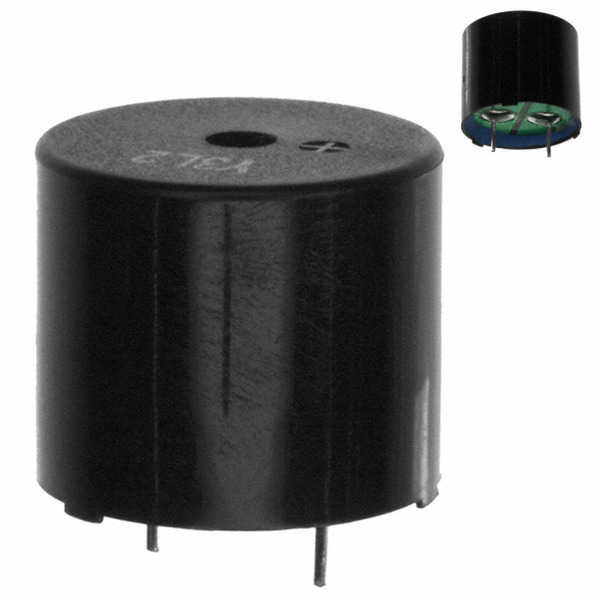

SD1614TT-B3M
TDK Corporation
Images are for reference only.
See Product Specifications for product details.
Buy SD1614TT-B3M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SD1614TT-B3M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SD1614TT-B3M |
|---|---|
| Manufacturer | TDK Corporation |
| Description | AUDIO MAGNETIC XDCR 6-16V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.00 | $1.585 | $1.445 | $1.347 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.256 | $1.141 | $1.068 | $1.027 | ||
Specifications
Data sheet
| Voltage Range: | 6 ~ 16V |
|---|---|
| Voltage - Rated: | 12V |
| Termination: | PC Pins |
| Technology: | Magnetic |
| Sound Pressure Level (SPL): | 85dB @ 12V, 10cm |
| Size / Dimension: | 0.630" Dia (16.00mm) |
| Series: | SD |
| Ratings: | - |
| Port Location: | Top |
| Packaging: | Bulk |
| Other Names: | 445-5228 SD1614TTB3M |
| Operating Temperature: | -40°C ~ 85°C |
| Operating Mode: | Single Tone |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Zero-Peak Signal |
| Height - Seated (Max): | 0.551" (14.00mm) |
| Frequency: | 2.048kHz |
| Duration: | - |
| Driver Circuitry: | Transducer, Externally Driven |
| Detailed Description: | Buzzers Transducer, Externally Driven Magnetic 12V 100mA 2.048kHz 85dB @ 12V, 10cm Through Hole PC Pins |
| Current - Supply: | 100mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply SD1614TT-B3M, use the request quote form to request SD1614TT-B3M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD1614TT-B3M.The price and lead time for SD1614TT-B3M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD1614TT-B3M.We look forward to working with you to establish long-term relations of cooperation
