SD101CWS-TP
Micro Commercial Components (MCC)

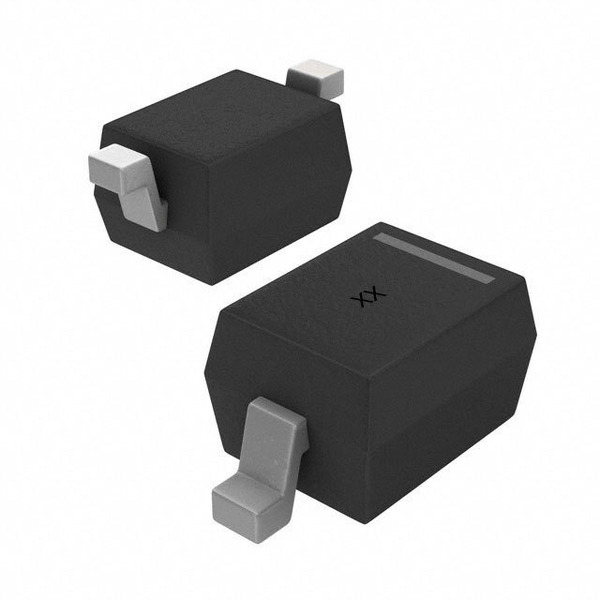

Images are for reference only.
See Product Specifications for product details.
Buy SD101CWS-TP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SD101CWS-TP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SD101CWS-TP |
|---|---|
| Manufacturer | MCC |
| Description | SD101CWS Series 40 V 2 A Surface Mount Small Signal Schottky Diode SOD-323 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.077 | $0.069 | $0.063 | $0.061 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 900mV @ 15mA |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 40V |
| Supplier Device Package: | SOD-323 |
| Speed: | Small Signal =< 200mA (Io), Any Speed |
| Series: | - |
| Reverse Recovery Time (trr): | 1ns |
| Packaging: | Cut Tape (CT) |
| Package / Case: | SC-76, SOD-323 |
| Other Names: | SD101CWSTPMSCT |
| Operating Temperature - Junction: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 40V 15mA (DC) Surface Mount SOD-323 |
| Current - Reverse Leakage @ Vr: | 200nA @ 30V |
| Current - Average Rectified (Io): | 15mA (DC) |
| Capacitance @ Vr, F: | 2.2pF @ 0V, 1MHz |
| Base Part Number: | SD101C |
| Email: | info@cjjhk.com |
Introduce
We can supply SD101CWS-TP, use the request quote form to request SD101CWS-TP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD101CWS-TP.The price and lead time for SD101CWS-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD101CWS-TP.We look forward to working with you to establish long-term relations of cooperation
