SD0805S020S0R5
KYOCERA AVX

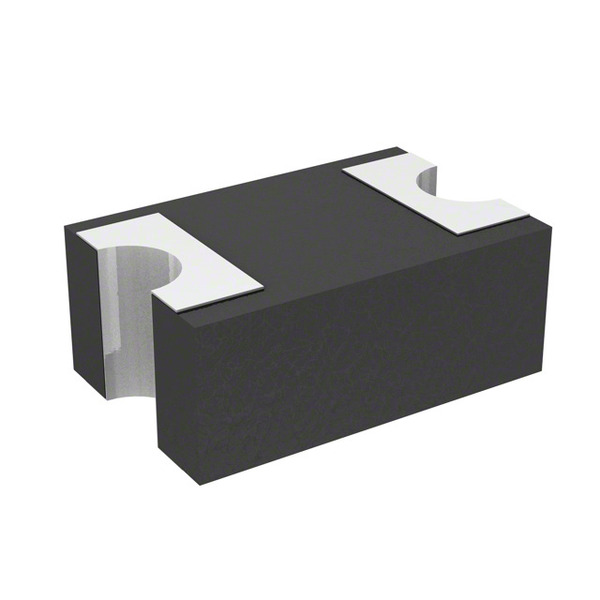

Images are for reference only.
See Product Specifications for product details.
Buy SD0805S020S0R5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SD0805S020S0R5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SD0805S020S0R5 |
|---|---|
| Manufacturer | KYOCERA AVX |
| Description | Small Signal Schottky Diode, Single, 20 V, 500 Ma, 440 Mv, 5 A, 125 C Rohs Compliant: Yes |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.165 | $0.149 | $0.134 | $0.131 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 440mV @ 500mA |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 20V |
| Supplier Device Package: | 0805 (2012 Metric) |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 0805 (2012 Metric) |
| Other Names: | 478-7799-2 |
| Operating Temperature - Junction: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 20V 500mA (DC) Surface Mount 0805 (2012 Metric) |
| Current - Reverse Leakage @ Vr: | 100µA @ 20V |
| Current - Average Rectified (Io): | 500mA (DC) |
| Capacitance @ Vr, F: | - |
| Base Part Number: | SD0805S02 |
| Email: | info@cjjhk.com |
Introduce
We can supply SD0805S020S0R5, use the request quote form to request SD0805S020S0R5 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SD0805S020S0R5.The price and lead time for SD0805S020S0R5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SD0805S020S0R5.We look forward to working with you to establish long-term relations of cooperation
