SCB25P15A-4CA
NKK Switches

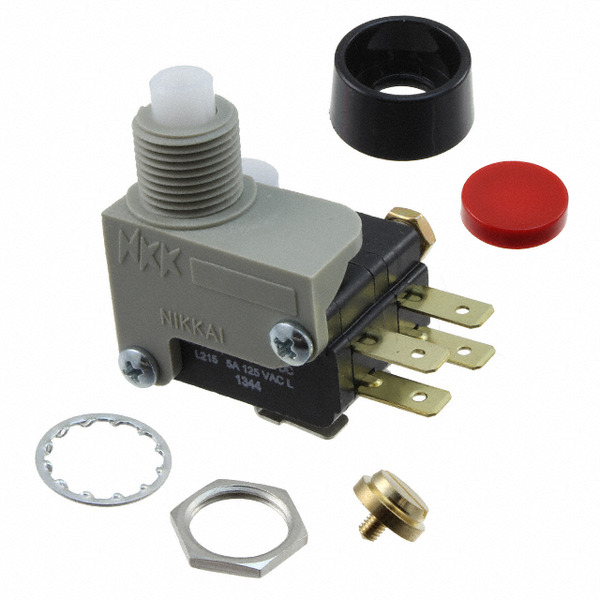

Images are for reference only.
See Product Specifications for product details.
Buy SCB25P15A-4CA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SCB25P15A-4CA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SCB25P15A-4CA |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.40 | $13.644 | $13.454 | $12.507 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $12.318 | $10.991 | $10.612 | |||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Type: | Standard |
| Termination Style: | Quick Connect - 0.187" (4.7mm) |
| Switch Function: | On-Mom |
| Series: | SCB |
| Panel Cutout Dimensions: | Circular - 12.50mm Dia |
| Packaging: | Bulk |
| Other Names: | 360-3172 SCB25P15A-4CA-ND |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Panel Mount, Rear |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 1,000,000 Cycles |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | With Shroud |
| Electrical Life: | 50,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard Panel Mount, Rear |
| Current Rating: | 15A (AC) |
| Color - Actuator/Cap: | Red |
| Circuit: | DPDT |
| Actuator Type: | Round, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply SCB25P15A-4CA, use the request quote form to request SCB25P15A-4CA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SCB25P15A-4CA.The price and lead time for SCB25P15A-4CA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SCB25P15A-4CA.We look forward to working with you to establish long-term relations of cooperation
