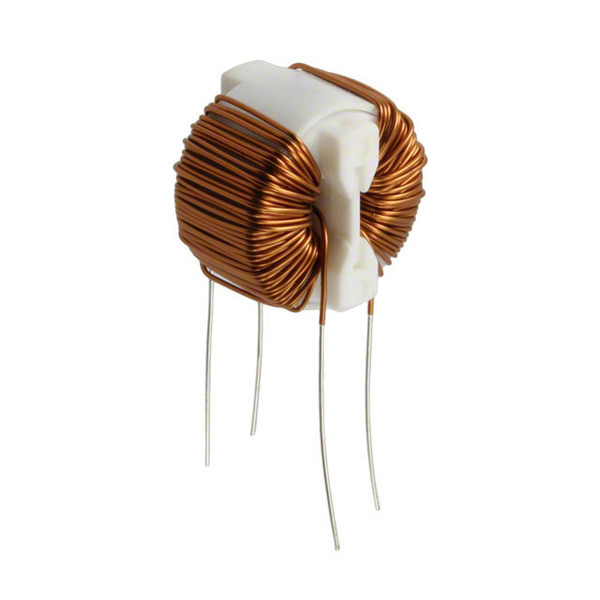

SC-01-80G
KEMET
Images are for reference only.
See Product Specifications for product details.
Buy SC-01-80G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SC-01-80G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SC-01-80G |
|---|---|
| Manufacturer | KEMET |
| Description | COMMON MODE CHOKE 8MH 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.59 | $1.272 | $1.034 | $1.007 | $0.981 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.954 | $0.946 | $0.837 | $0.769 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 250V |
|---|---|
| Voltage Rating - AC: | 250V |
| Size / Dimension: | 0.689" Dia x 0.551" W (17.50mm x 14.00mm) |
| Series: | SC |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Vertical, No Base, 4 PC Pin |
| Other Names: | 399-10633 |
| Operating Temperature: | -25°C ~ 105°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 8mH @ 100kHz |
| Height (Max): | 0.689" (17.50mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 8mH @ 100kHz 2 Line Common Mode Choke Through Hole 1A DCR 300 mOhm |
| DC Resistance (DCR) (Max): | 300 mOhm |
| Current Rating (Max): | 1A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply SC-01-80G, use the request quote form to request SC-01-80G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SC-01-80G.The price and lead time for SC-01-80G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SC-01-80G.We look forward to working with you to establish long-term relations of cooperation
