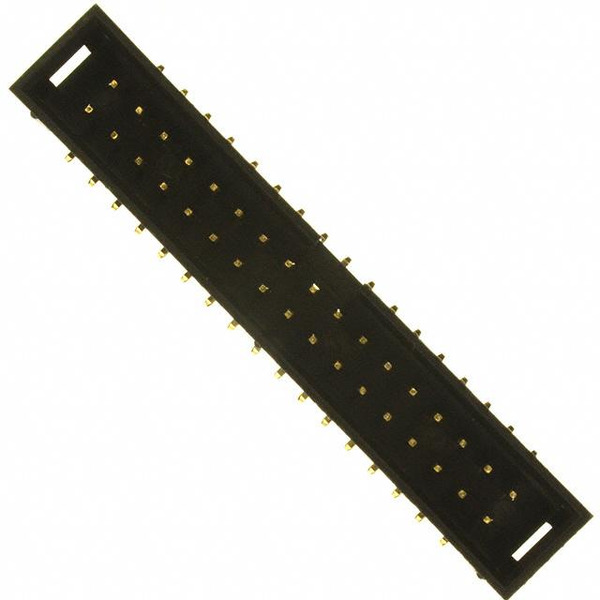

SBH11-NBPC-D17-SM-BK
Sullins Connector Solutions
Images are for reference only.
See Product Specifications for product details.
Buy SBH11-NBPC-D17-SM-BK with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SBH11-NBPC-D17-SM-BK with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SBH11-NBPC-D17-SM-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADR 2.54MM 34POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.45 | $1.319 | $1.13 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.942 | $0.807 | $0.777 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | SBH11 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | S9191 SBH11NBPCD17SMBK |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 34 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 11.17mm, 12.72mm, 14.87mm, 19.87mm |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.358" (9.10mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 34 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | Flash |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply SBH11-NBPC-D17-SM-BK, use the request quote form to request SBH11-NBPC-D17-SM-BK pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SBH11-NBPC-D17-SM-BK.The price and lead time for SBH11-NBPC-D17-SM-BK depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SBH11-NBPC-D17-SM-BK.We look forward to working with you to establish long-term relations of cooperation
