SB380-T
Diodes Incorporated

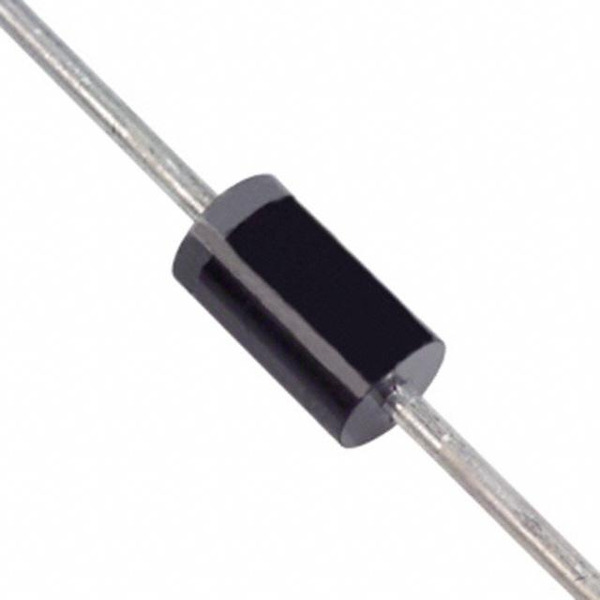

Images are for reference only.
See Product Specifications for product details.
Buy SB380-T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SB380-T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SB380-T |
|---|---|
| Manufacturer | Diodes Inc. |
| Description | Rectifier Diode Schottky 80V 3A 2-Pin DO-201AD T/R |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.188 | $0.17 | $0.153 | $0.15 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 790mV @ 3A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 80V |
| Supplier Device Package: | DO-201AD |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | DO-201AD, Axial |
| Operating Temperature - Junction: | -65°C ~ 150°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 80V 3A Through Hole DO-201AD |
| Current - Reverse Leakage @ Vr: | 500µA @ 80V |
| Current - Average Rectified (Io): | 3A |
| Capacitance @ Vr, F: | - |
| Base Part Number: | SB380 |
| Email: | info@cjjhk.com |
Introduce
We can supply SB380-T, use the request quote form to request SB380-T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB380-T.The price and lead time for SB380-T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SB380-T.We look forward to working with you to establish long-term relations of cooperation
