SA649000
On-Shore Technology, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy SA649000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SA649000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SA649000 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |

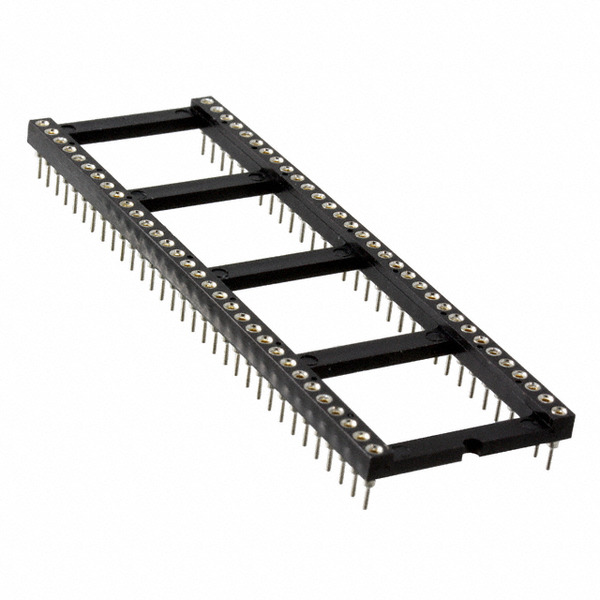

| Description | CONN IC DIP SOCKET 64POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Type: | DIP, 0.9" (22.86mm) Row Spacing |
|---|---|
| Termination Post Length: | - |
| Termination: | Solder |
| Series: | SA |
| Pitch - Post: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Other Names: | ED3036 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Positions or Pins (Grid): | 64 (2 x 32) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Thermoplastic, Polyester, Glass Filled |
| Features: | Open Frame |
| Current Rating: | 3A |
| Contact Resistance: | 4 mOhm |
| Contact Material - Post: | Brass |
| Contact Material - Mating: | Beryllium Copper |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Email: | info@cjjhk.com |
Introduce
We can supply SA649000, use the request quote form to request SA649000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SA649000.The price and lead time for SA649000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SA649000.We look forward to working with you to establish long-term relations of cooperation
