SA305EX
Apex Microtechnology

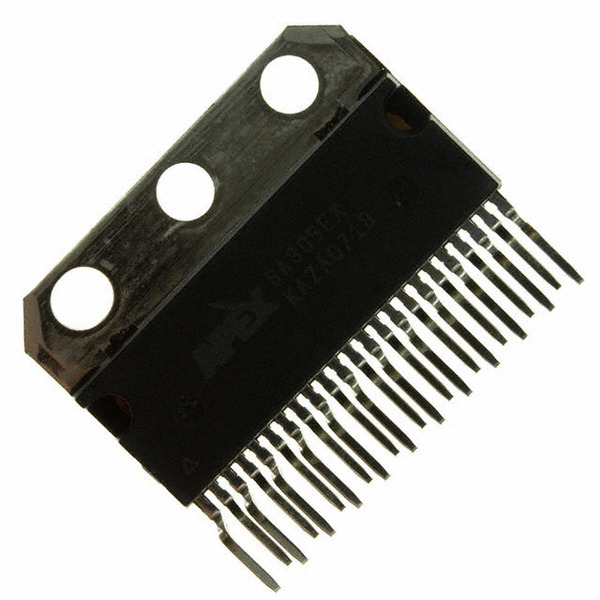

Images are for reference only.
See Product Specifications for product details.
Buy SA305EX with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SA305EX with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SA305EX |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | IC MOTOR DRIVER PWM 23SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Voltage - Load: | 9.8 V ~ 60 V |
| Technology: | Power MOSFET |
| Supplier Device Package: | 23-SIP |
| Series: | Apex Precision Power® |
| Rds On (Typ): | 600 mOhm LS, 600 mOhm HS |
| Packaging: | Tube |
| Package / Case: | 23-SIP Formed Leads |
| Output Configuration: | Half Bridge (3) |
| Other Names: | 598-1360 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Features: | Slew Rate Controlled, Status Flag |
| Fault Protection: | Current Limiting, Over Temperature, Shoot Through, Short Circuit |
| Detailed Description: | Half Bridge (3) Driver DC Motors, Solenoids Power MOSFET 23-SIP |
| Current - Peak Output: | 10A |
| Current - Output / Channel: | 5A |
| Base Part Number: | SA30* |
| Applications: | DC Motors, Solenoids |
| Email: | info@cjjhk.com |
Introduce
We can supply SA305EX, use the request quote form to request SA305EX pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SA305EX.The price and lead time for SA305EX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SA305EX.We look forward to working with you to establish long-term relations of cooperation
