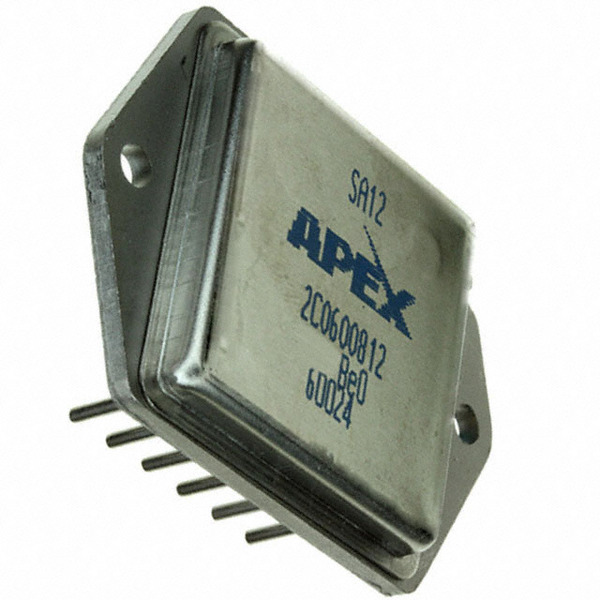

SA12
Apex Microtechnology
Images are for reference only.
See Product Specifications for product details.
Buy SA12 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SA12 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SA12 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | IC MOTOR DRIVER PAR 12DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $649.18 | $625.138 | ||||
Specifications
Data sheet
| Voltage - Supply: | 14 V ~ 16 V |
|---|---|
| Voltage - Load: | 16 V ~ 200 V |
| Technology: | Power MOSFET |
| Supplier Device Package: | 12-PowerDip |
| Series: | - |
| Rds On (Typ): | 400 mOhm (Max) |
| Packaging: | Tube |
| Package / Case: | 12-PowerDIP, Module |
| Output Configuration: | Half Bridge (2) |
| Other Names: | 598-1364 598-2140-5 598-2140-5-ND |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Load Type: | Inductive, Capacitive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Features: | - |
| Fault Protection: | Current Limiting, Over Temperature |
| Detailed Description: | Half Bridge (2) Driver AC Motors, Piezo Devices Power MOSFET 12-PowerDip |
| Current - Peak Output: | 20A |
| Current - Output / Channel: | 15A |
| Base Part Number: | SA* |
| Applications: | AC Motors, Piezo Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply SA12, use the request quote form to request SA12 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SA12.The price and lead time for SA12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SA12.We look forward to working with you to establish long-term relations of cooperation
