S4B-PH-K-S(LF)(SN)
JST

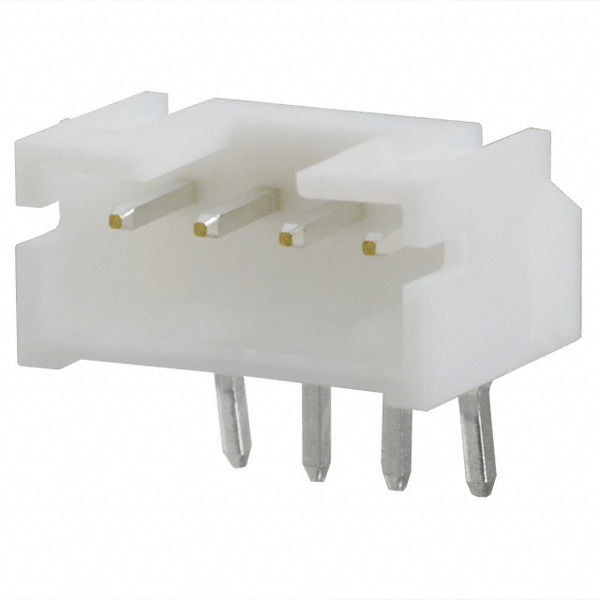

Images are for reference only.
See Product Specifications for product details.
Buy S4B-PH-K-S(LF)(SN) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy S4B-PH-K-S(LF)(SN) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | S4B-PH-K-S(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER PH SIDE 4POS 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.22 | $0.208 | $0.144 | $0.122 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.10 | $0.089 | $0.08 | |||
Specifications
Data sheet
| Voltage Rating: | 100V |
|---|---|
| Termination: | Press-Fit, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | PH |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 455-1721 S4BPHKSLFSN |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Insulation Height: | 0.189" (4.80mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Detent Lock |
| Detailed Description: | Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm) |
| Current Rating: | 2A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.134" (3.40mm) |
| Contact Length - Mating: | 0.130" (3.30mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply S4B-PH-K-S(LF)(SN), use the request quote form to request S4B-PH-K-S(LF)(SN) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S4B-PH-K-S(LF)(SN).The price and lead time for S4B-PH-K-S(LF)(SN) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S4B-PH-K-S(LF)(SN).We look forward to working with you to establish long-term relations of cooperation
