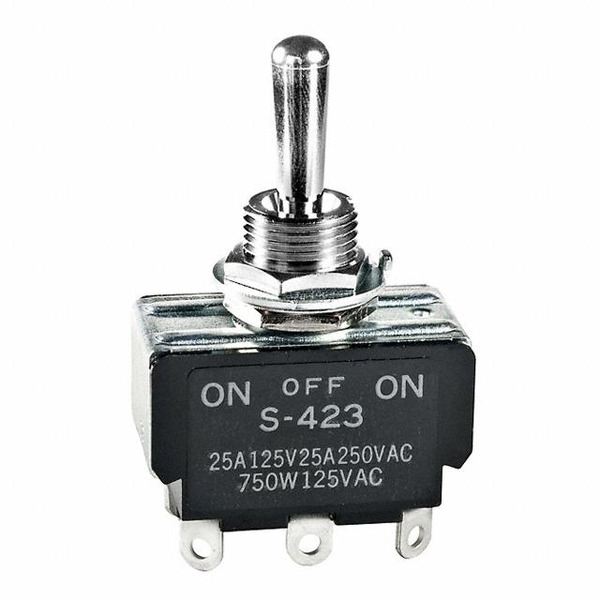

S423
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy S423 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy S423 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | S423 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 25A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.55 | $11.248 | $10.944 | $10.336 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $10.032 | $9.728 | $8.208 | $7.904 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Termination Style: | Solder Lug |
| Switch Function: | On-Off-On |
| Series: | S400 |
| Panel Cutout Dimensions: | Circular - 12.50mm Dia |
| Packaging: | Bulk |
| Other Names: | S423-RO S423-RO-ND |
| Operating Temperature: | -10°C ~ 70°C |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | - |
| Electrical Life: | 15,000 Cycles |
| Detailed Description: | Toggle Switch DPDT Panel Mount |
| Current Rating: | 25A (AC) |
| Circuit: | DPDT |
| Bushing Thread: | M12 x 1 |
| Actuator Type: | Standard Round |
| Actuator Material: | Brass, Chrome Plated |
| Actuator Length: | 17.50mm |
| Email: | info@cjjhk.com |
Introduce
We can supply S423, use the request quote form to request S423 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S423.The price and lead time for S423 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S423.We look forward to working with you to establish long-term relations of cooperation
