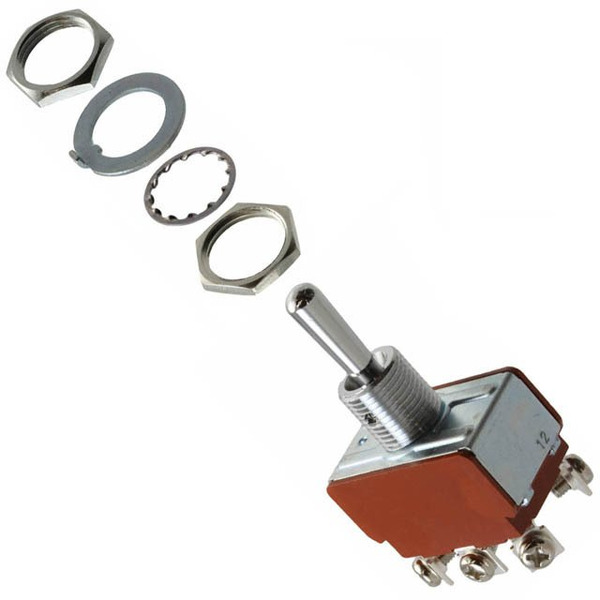

S338T
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy S338T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy S338T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | S338T |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.50 | $11.193 | $10.89 | $10.285 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.983 | $9.68 | $8.168 | $7.865 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Screw Terminal |
| Switch Function: | Mom-Off-Mom |
| Series: | S300 |
| Panel Cutout Dimensions: | Circular - 12.50mm Dia |
| Packaging: | Bulk |
| Other Names: | 360-1233 360-1233-ND 360-1914 S338T-RO |
| Operating Temperature: | -10°C ~ 70°C |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | - |
| Electrical Life: | 25,000 Cycles |
| Detailed Description: | Toggle Switch DPDT Panel Mount |
| Current Rating: | 15A (AC), 20A (DC) |
| Circuit: | DPDT |
| Bushing Thread: | M12 x 1 |
| Actuator Type: | Standard Round |
| Actuator Material: | Brass, Chrome Plated |
| Actuator Length: | 17.50mm |
| Email: | info@cjjhk.com |
Introduce
We can supply S338T, use the request quote form to request S338T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S338T.The price and lead time for S338T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S338T.We look forward to working with you to establish long-term relations of cooperation
