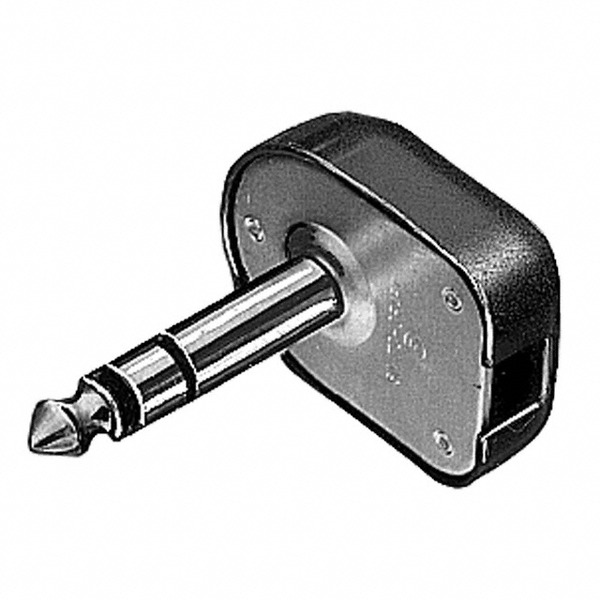

S230
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy S230 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy S230 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | S230 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG STEREO 5.23MM RA 3COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.08 | $8.48 | $8.268 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $7.632 | $7.208 | $6.89 | |||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Thread Size: | - |
| Termination: | Screw |
| Signal Lines: | Stereo (3 Conductor, TRS) |
| Shielding: | Unshielded |
| Series: | 230 |
| Panel Hole Size: | - |
| Packaging: | Bulk |
| Other Names: | S230-ND SC1999 |
| Operating Temperature: | - |
| Number of Positions/Contacts: | 3 Conductors, 3 Contacts |
| Mounting Type: | Free Hanging (In-Line), Right Angle |
| Mating Length/Depth: | 1.156" (29.40mm) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Does Not Contain Switch |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 5.23mm (0.206") |
| Includes: | 5 pcs - 1 Connector, 1 Handle, 3 Screws |
| Housing Material: | Thermoplastic |
| Gender: | Male |
| Features: | - |
| Detailed Description: | 5.23mm (0.206") Phone Plug Stereo (3 Conductor, TRS) Connector Screw |
| Contact Material - Plating: | Nickel |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Plug |
| Cable Opening: | 0.281" (7.14mm) |
| Body Material: | - |
| Body Color: | Silver, Black |
| Actual Diameter: | 0.206" (5.23mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply S230, use the request quote form to request S230 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S230.The price and lead time for S230 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S230.We look forward to working with you to establish long-term relations of cooperation
