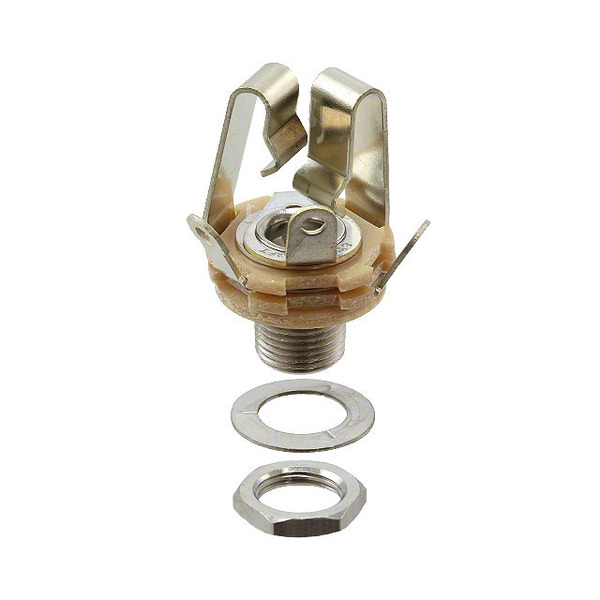

S12B
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy S12B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy S12B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | S12B |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 5.23MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.41 | $3.139 | $2.959 | $2.87 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.735 | $2.69 | $2.638 | |||
Specifications
Data sheet
| Voltage - Rated: | 25VDC |
|---|---|
| Thread Size: | 3/8"-32 |
| Termination: | Solder Eyelet(s) |
| Signal Lines: | Stereo (3 Conductor, TRS) |
| Shielding: | Unshielded |
| Series: | LITTEL-JAX® |
| Panel Hole Size: | 0.375" (9.52mm) |
| Packaging: | Bulk |
| Other Names: | SC1097 |
| Operating Temperature: | -20°C ~ 65°C |
| Number of Positions/Contacts: | 3 Conductors, 3 Contacts |
| Mounting Type: | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Length/Depth: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Does Not Contain Switch |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 5.23mm (0.206") |
| Includes: | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material: | - |
| Gender: | Female |
| Features: | Mounting Hardware, Thread Lock |
| Detailed Description: | 5.23mm (0.206") Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Current Rating: | 1A |
| Contact Material - Plating: | Natural |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Jack |
| Cable Opening: | - |
| Body Material: | Copper Alloy |
| Body Color: | Silver |
| Actual Diameter: | 0.210" (5.33mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply S12B, use the request quote form to request S12B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S12B.The price and lead time for S12B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S12B.We look forward to working with you to establish long-term relations of cooperation
