RT8522-10-6M0
Schaffner EMC, Inc.

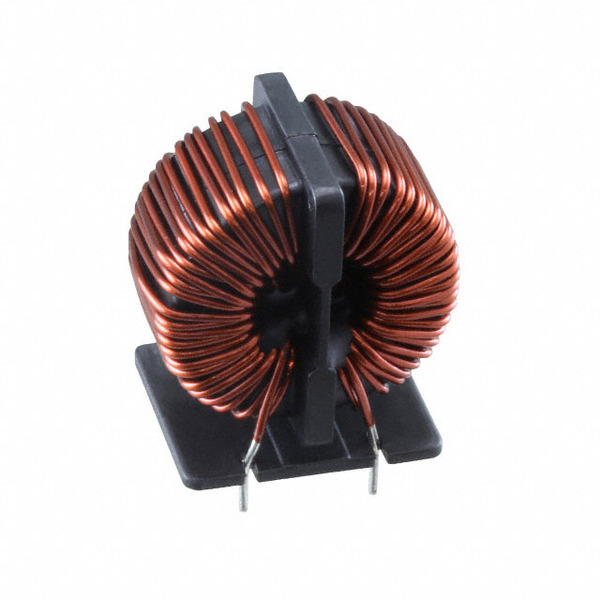

Images are for reference only.
See Product Specifications for product details.
Buy RT8522-10-6M0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RT8522-10-6M0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RT8522-10-6M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 6MH 10A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $7.65 | $6.885 | $4.896 | $4.59 | $4.522 | |
Specifications
Data sheet
| Voltage Rating - DC: | 425V |
|---|---|
| Voltage Rating - AC: | 300V |
| Size / Dimension: | 1.693" L x 1.260" W (43.00mm x 32.00mm) |
| Series: | RT |
| Ratings: | - |
| Package / Case: | Vertical, 4 PC Pin |
| Other Names: | 816963 817-2275 |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 6mH @ 100kHz |
| Height (Max): | 1.732" (44.00mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 6mH @ 100kHz 2 Line Common Mode Choke Through Hole 10A DCR 16 mOhm (Typ) |
| DC Resistance (DCR) (Max): | 16 mOhm (Typ) |
| Current Rating (Max): | 10A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply RT8522-10-6M0, use the request quote form to request RT8522-10-6M0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RT8522-10-6M0.The price and lead time for RT8522-10-6M0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RT8522-10-6M0.We look forward to working with you to establish long-term relations of cooperation
