RT8132-16-3M0
Schaffner EMC, Inc.

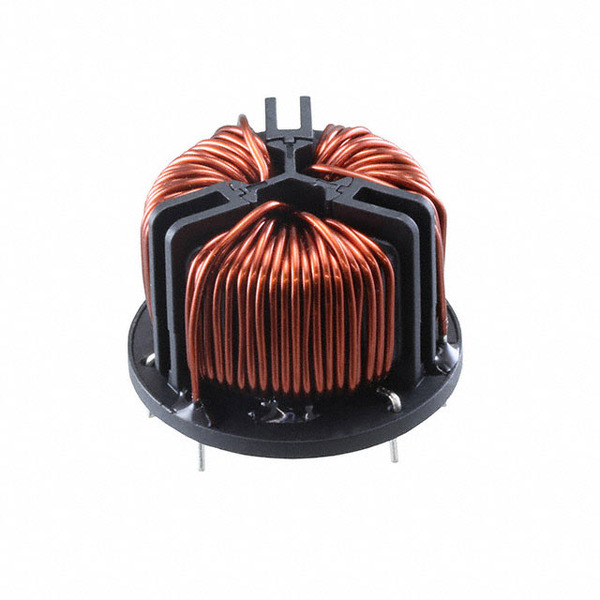

Images are for reference only.
See Product Specifications for product details.
Buy RT8132-16-3M0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RT8132-16-3M0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RT8132-16-3M0 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | COMMON MODE CHOKE 3MH 16A 3LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 48 pcs | 144 pcs | ||
|---|---|---|---|---|---|
| $10.06 | $8.426 | $8.033 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | 600V |
| Size / Dimension: | 2.244" Dia (57.00mm) |
| Series: | RT |
| Ratings: | - |
| Package / Case: | Horizontal, 6 PC Pin |
| Other Names: | 816971 817-2283 |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Lines: | 3 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 3mH @ 100kHz |
| Height (Max): | 1.457" (37.00mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 3mH @ 100kHz 3 Line Common Mode Choke Through Hole 16A DCR 8 mOhm (Typ) |
| DC Resistance (DCR) (Max): | 8 mOhm (Typ) |
| Current Rating (Max): | 16A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply RT8132-16-3M0, use the request quote form to request RT8132-16-3M0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RT8132-16-3M0.The price and lead time for RT8132-16-3M0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RT8132-16-3M0.We look forward to working with you to establish long-term relations of cooperation
