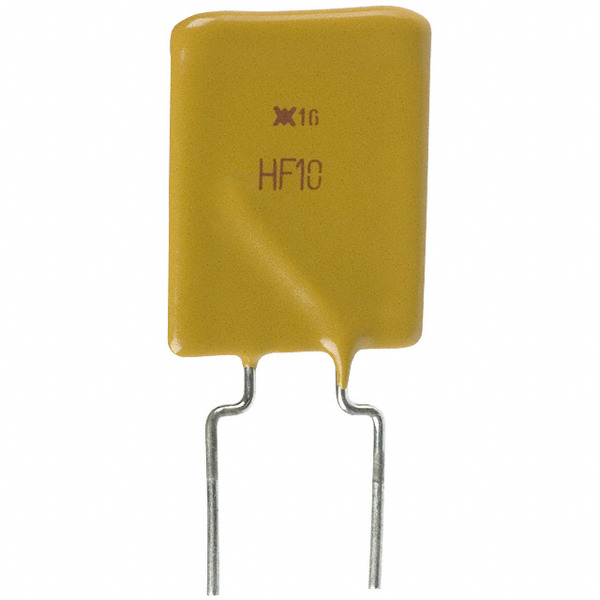

RHEF1000
Hamlin / Littelfuse
Images are for reference only.
See Product Specifications for product details.
Buy RHEF1000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RHEF1000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RHEF1000 |
|---|---|
| Manufacturer | Littelfuse |
| Description | PTC Resettable Fuse 10A(hold) 18.5A(trip) 16VDC 100A 5.3W 9s 0.0062Ohm Radial 17 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.671 | $0.606 | $0.546 | $0.535 | ||
Specifications
Data sheet
| Voltage - Max: | 16V |
|---|---|
| Type: | Polymeric |
| Time to Trip: | 9s |
| Thickness (Max): | - |
| Size / Dimension: | 0.689" L x 0.118" W (17.50mm x 3.00mm) |
| Series: | PolySwitch®, RHEF |
| Resistance - Post Trip (R1) (Max): | 15 mOhms |
| Resistance - Initial (Ri) (Min): | 6.2 mOhms |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Radial, Disc |
| Other Names: | RF3321-000 RHEF1000HF |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Spacing: | 0.400" (10.15mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 1.043" (26.50mm) |
| Detailed Description: | Polymeric PTC Resettable Fuse 16V 10A Ih Through Hole Radial, Disc |
| Current - Trip (It): | 18.5A |
| Current - Max: | 100A |
| Current - Hold (Ih) (Max): | 10A |
| Approvals: | CSA, TUV, UL |
| Email: | info@cjjhk.com |
Introduce
We can supply RHEF1000, use the request quote form to request RHEF1000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RHEF1000.The price and lead time for RHEF1000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RHEF1000.We look forward to working with you to establish long-term relations of cooperation
