RASSM10
Conxall / Switchcraft

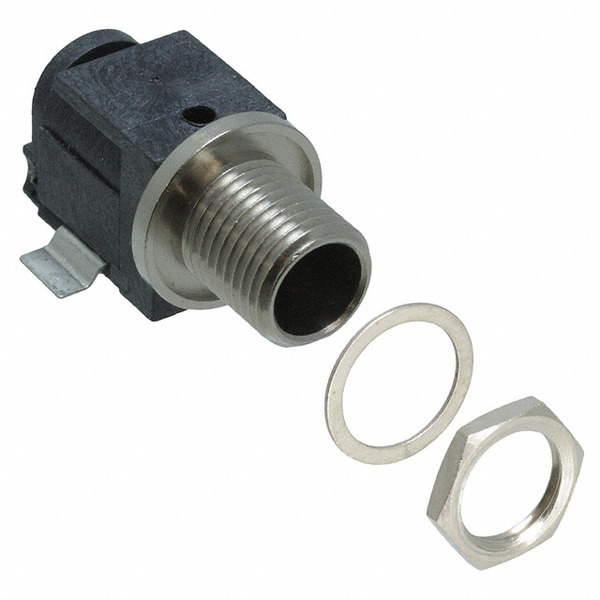

Images are for reference only.
See Product Specifications for product details.
Buy RASSM10 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RASSM10 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RASSM10 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PWR JACK 2X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.65 | $4.57 | $4.189 | $3.998 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.808 | $3.332 | $3.237 | $3.094 | ||
Specifications
Data sheet
| Voltage - Rated: | 24VDC |
|---|---|
| Thread Size: | 5/16"-32 |
| Termination: | Solder |
| Shielding: | Unshielded |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | SC1926 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Surface Mount |
| Mounting Feature: | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | - |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch, Normally Closed |
| Insulation Color: | Silver |
| Ingress Protection: | - |
| Industry Recognized Mating Diameter: | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Includes: | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material: | Thermoplastic |
| Gender: | Male |
| Features: | - |
| Detailed Description: | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount |
| Current Rating: | 11A |
| Contact Material - Plating: | Tin |
| Contact Material: | Copper Alloy |
| Connector Type: | Jack |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.078" (2.00mm ID), 0.252" (6.40mm OD) |
| Email: | info@cjjhk.com |
Introduce
We can supply RASSM10, use the request quote form to request RASSM10 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RASSM10.The price and lead time for RASSM10 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RASSM10.We look forward to working with you to establish long-term relations of cooperation
