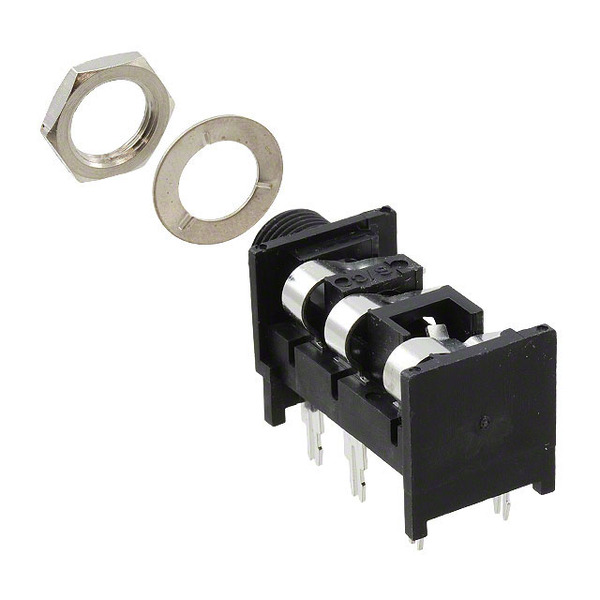

RA49B14B
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy RA49B14B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RA49B14B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RA49B14B |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $3.29 | $2.657 | $2.436 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $2.325 | $2.214 | $2.163 | |||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Thread Size: | 3/8"-32 |
| Termination: | Solder |
| Signal Lines: | Stereo (3 Conductor, TRS) |
| Shielding: | Unshielded |
| Series: | RA Jax® |
| Panel Hole Size: | - |
| Packaging: | Bulk |
| Other Names: | RA49B14B-ND SC2030 |
| Operating Temperature: | - |
| Number of Positions/Contacts: | 3 Conductors, 5 Contacts |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Two Switches |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 6.35mm (0.250", 1/4") - Headphone |
| Includes: | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material: | Thermoplastic, Polyester |
| Gender: | Female |
| Features: | Board Guide |
| Detailed Description: | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Contact Material - Plating: | Silver |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Jack |
| Cable Opening: | - |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.253" (6.43mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply RA49B14B, use the request quote form to request RA49B14B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RA49B14B.The price and lead time for RA49B14B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RA49B14B.We look forward to working with you to establish long-term relations of cooperation
