R10815RS02Q
C&K

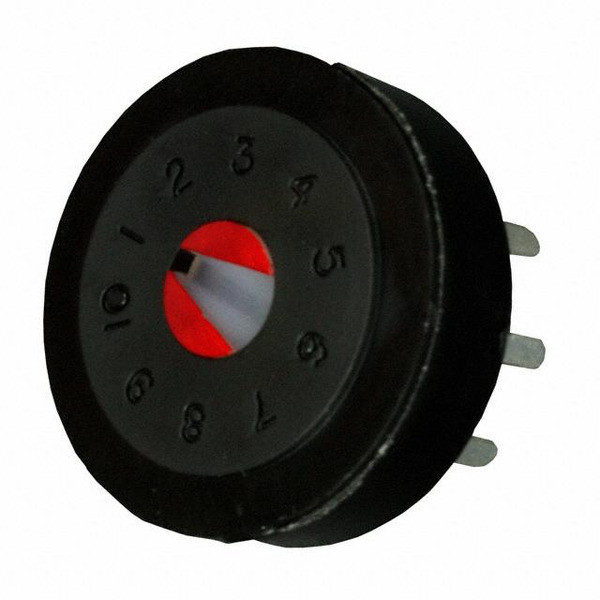

Images are for reference only.
See Product Specifications for product details.
Buy R10815RS02Q with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy R10815RS02Q with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | R10815RS02Q |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 8POS 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.97 | $4.767 | $4.353 | $4.145 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.731 | $3.42 | $3.316 | $3.213 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 125V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | PC Pin |
| Series: | R |
| Panel Cutout Dimensions: | - |
| Other Names: | *R10815RS02Q CKN9480 |
| Operating Force: | - |
| Number of Positions: | 8 |
| Number of Poles per Deck: | 1 |
| Number of Decks: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Fixed |
| Features: | - |
| Detailed Description: | Rotary Switch 8 Position SP8T 5A (AC), 500mA (DC) 125VAC Through Hole |
| Depth Behind Panel: | 10.29mm |
| Current Rating: | 5A (AC), 500mA (DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Copper |
| Contact Finish: | Silver |
| Circuit per Deck: | SP8T |
| Angle of Throw: | 36° |
| Actuator Type: | Screwdriver Slot |
| Actuator Length: | Flush |
| Email: | info@cjjhk.com |
Introduce
We can supply R10815RS02Q, use the request quote form to request R10815RS02Q pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number R10815RS02Q.The price and lead time for R10815RS02Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# R10815RS02Q.We look forward to working with you to establish long-term relations of cooperation
