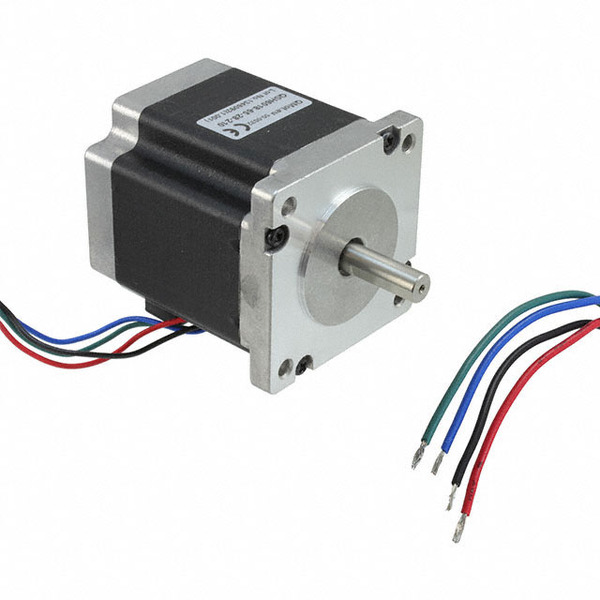

QSH6018-65-28-210
TRINAMIC Motion Control GmbH
Images are for reference only.
See Product Specifications for product details.
Buy QSH6018-65-28-210 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy QSH6018-65-28-210 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | QSH6018-65-28-210 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 3.36V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $86.92 | $83.867 | $82.342 | $79.292 | ||
Specifications
Data sheet
| Weight: | 2.6 lbs (1.2kg) |
|---|---|
| Voltage - Rated: | 3.36VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 297.38 / 2100 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 200 |
| Step Angle: | 1.8° |
| Size / Dimension: | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Series: | QMot QSH6018 |
| Rotor Inertia: | 570gcm² |
| Other Names: | 1460-1083 50-0032 |
| Operating Temperature: | -20°C ~ 50°C |
| NEMA Frame Size: | 24 |
| Mounting Hole Spacing: | 1.856" (47.14mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Shaft and Bearing: | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Flatted Shaft |
| Diameter - Shaft: | 0.315" (8.00mm) |
| Detailed Description: | Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 3.36VDC |
| Current Rating: | 2.8A |
| Coil Type: | Bipolar |
| Coil Resistance: | 1.2 Ohms |
| Approvals: | CE |
| Accuracy: | ±5% |
| Email: | info@cjjhk.com |
Introduce
We can supply QSH6018-65-28-210, use the request quote form to request QSH6018-65-28-210 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH6018-65-28-210.The price and lead time for QSH6018-65-28-210 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH6018-65-28-210.We look forward to working with you to establish long-term relations of cooperation
