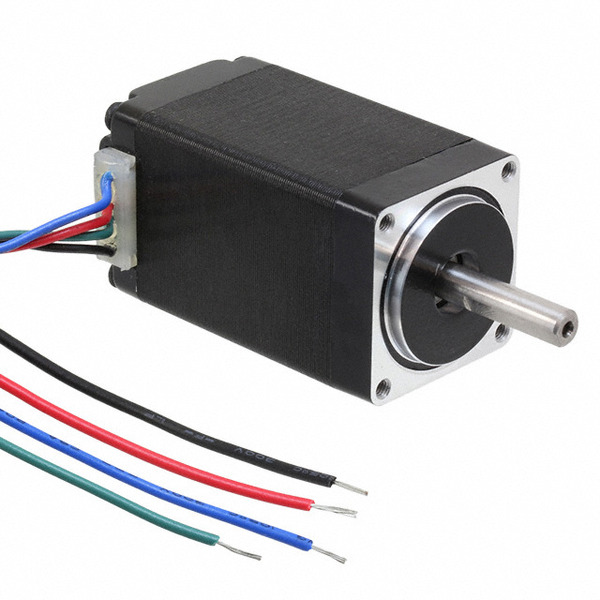

QSH2818-51-07-012
TRINAMIC Motion Control GmbH
Images are for reference only.
See Product Specifications for product details.
Buy QSH2818-51-07-012 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy QSH2818-51-07-012 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | QSH2818-51-07-012 |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEP MOTOR HYBRID BIPOLAR 6.2V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $50.54 | $48.797 | $47.926 | $46.357 | ||
Specifications
Data sheet
| Weight: | 0.441 lb (200.03g) |
|---|---|
| Voltage - Rated: | 6.2VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 16.99 / 120 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 200 |
| Step Angle: | 1.8° |
| Size / Dimension: | Square - 1.100" x 1.100" (28.00mm x 28.00mm) |
| Series: | QMot QSH2818 |
| Rotor Inertia: | 18gcm² |
| Other Names: | 1460-1073 50-0031 |
| Operating Temperature: | -20°C ~ 50°C |
| NEMA Frame Size: | 11 |
| Mounting Hole Spacing: | 0.905" (22.98mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Shaft and Bearing: | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Flatted Shaft |
| Diameter - Shaft: | 0.197" (5.00mm) |
| Detailed Description: | Bipolar Stepper Motor Frame Size 11 200 Step 0.67A 6.2VDC |
| Current Rating: | 670mA |
| Coil Type: | Bipolar |
| Coil Resistance: | 9.2 Ohms |
| Approvals: | CE |
| Accuracy: | ±5% |
| Email: | info@cjjhk.com |
Introduce
We can supply QSH2818-51-07-012, use the request quote form to request QSH2818-51-07-012 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH2818-51-07-012.The price and lead time for QSH2818-51-07-012 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH2818-51-07-012.We look forward to working with you to establish long-term relations of cooperation
