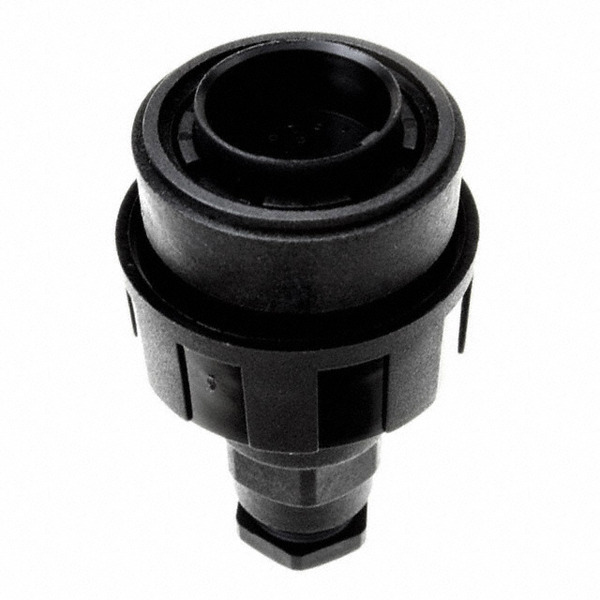

PX0820/P
Arcolectric (Bulgin)
Images are for reference only.
See Product Specifications for product details.
Buy PX0820/P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PX0820/P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PX0820/P |
|---|---|
| Manufacturer | Bulgin |
| Description | CONN HSNG PLUG 25POS INLINE PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.43 | $10.932 | $9.938 | $9.441 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.193 | $8.199 | $7.702 | $6.808 | ||
Specifications
Data sheet
| Wire Gauge or Range - AWG: | - |
|---|---|
| Usage: | Unshielded |
| Type Attributes: | IP68 - Dust Tight, Waterproof |
| Type: | For Male Pins |
| Stacking Direction: | Crimp and Solder Cup |
| Shield Termination: | Circular |
| Shell Material, Finish: | - |
| Shell Finish: | Polyamide (PA), Nylon, Glass Filled |
| Series: | Buccaneer®, Standard |
| RoHS Status: | Bulk |
| Plug/Mating Plug Diameter: | Black |
| Other Names: | 708-1114 PX0820P |
| Operating Temperature: | -20°C ~ 70°C |
| Number of Positions: | 25 (Power) |
| Note: | Contacts Not Included |
| Mounting Type: | Free Hanging (In-Line) |
| Material Flammability Rating: | UL94 HB |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Manufacturer Part Number: | PX0820/P |
| Large Diameter Supplied: | - |
| Insert Material: | Polyamide (PA), Nylon, Glass Filled |
| Includes: | 6 pcs - 1 Connector, 1 Backshell, 1 Cage Clamp, 1 Gland, 1 Locking Ring, 1 Nut |
| Features: | Backshell, Coupling Nut |
| Expanded Description: | 25 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut |
| Description: | CONN HSNG PLUG 25POS INLINE PIN |
| Current - Max/Contact: | Threaded |
| Coupling Nut Material, Plating: | 1.500" (38.10mm) |
| Coupling Nut Diameter: | - |
| Contact Shape: | Polyamide (PA), Nylon |
| Contact Material: | Keyed |
| Connector Type: | Plug Housing |
| Body Material: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PX0820/P, use the request quote form to request PX0820/P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PX0820/P.The price and lead time for PX0820/P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PX0820/P.We look forward to working with you to establish long-term relations of cooperation
