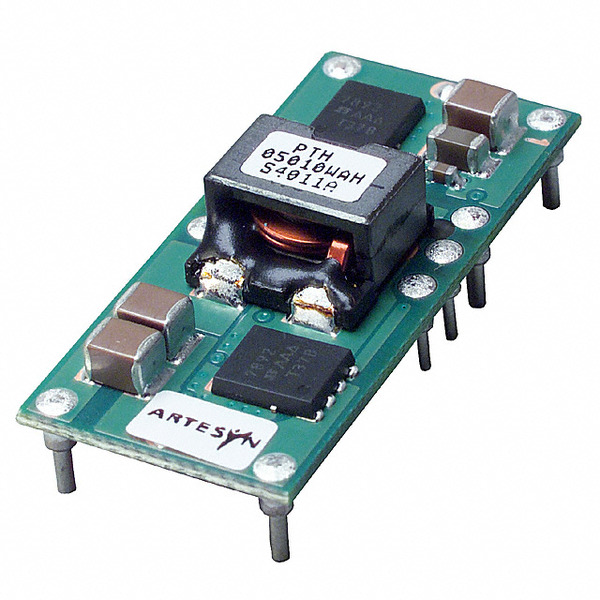

PTH05010WAH
Images are for reference only.
See Product Specifications for product details.
Buy PTH05010WAH with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PTH05010WAH with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PTH05010WAH |
|---|---|
| Manufacturer | N/A |
| Description | 15 A, 5-V Input Wide-Output Adjust Plug-in Power Module 10-Through-Hole Module -40 to 85 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $20.069 | $18.115 | $16.339 | $15.984 | ||
Specifications
Data sheet
| Voltage - Output 3: | - |
|---|---|
| Voltage - Output 2: | - |
| Voltage - Output 1: | 0.8 ~ 3.6 V |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Type: | Non-Isolated PoL Module |
| Size / Dimension: | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm) |
| Series: | PTH05010W |
| Power (Watts): | 54W |
| Packaging: | Tray |
| Package / Case: | 10-DIP Module |
| Other Names: | 393-1071 393-1071-ND 393-1104 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Outputs: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Remote On/Off, OTP, SCP, UVLO |
| Efficiency: | 95% |
| Detailed Description: | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 15A 4.5V - 5.5V Input |
| Current - Output (Max): | 15A |
| Applications: | ITE (Commercial) |
| Email: | info@cjjhk.com |
Introduce
We can supply PTH05010WAH, use the request quote form to request PTH05010WAH pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTH05010WAH.The price and lead time for PTH05010WAH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTH05010WAH.We look forward to working with you to establish long-term relations of cooperation
