PTC20DGBN
Sullins Connector Solutions

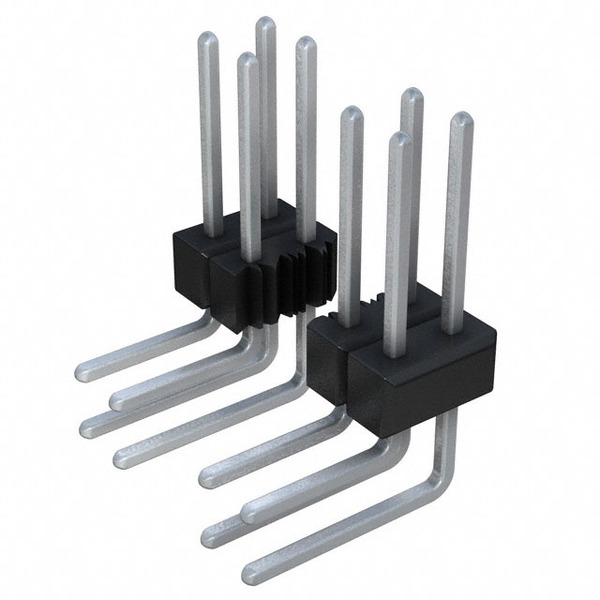

Images are for reference only.
See Product Specifications for product details.
Buy PTC20DGBN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PTC20DGBN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PTC20DGBN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100 DUAL R/A 40POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | - |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | S2322-20 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 40 |
| Mounting Type: | Through Hole, Right Angle |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic, Polyester |
| Insulation Height: | 0.240" (6.10mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.220" (5.58mm) |
| Contact Length - Mating: | 0.318" (8.08mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PTC20DGBN, use the request quote form to request PTC20DGBN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTC20DGBN.The price and lead time for PTC20DGBN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTC20DGBN.We look forward to working with you to establish long-term relations of cooperation
