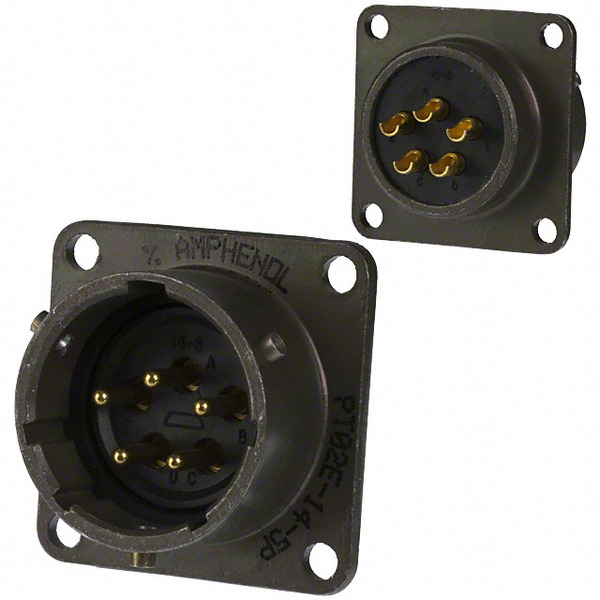

PT02E-14-5P(025)
Amphenol Industrial
Images are for reference only.
See Product Specifications for product details.
Buy PT02E-14-5P(025) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PT02E-14-5P(025) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PT02E-14-5P(025) |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $15.37 | $13.308 | $13.108 | $12.376 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $12.31 | $11.578 | $10.979 | $10.713 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder Cup |
| Shielding: | Unshielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | 14-5 |
| Shell Material: | Aluminum |
| Shell Finish: | Black Zinc Cobalt |
| Series: | MIL-DTL-26482 Series I, PT |
| Packaging: | Bulk |
| Other Names: | C93-148214-05P PT02E145P025 |
| Orientation: | N (Normal) |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Positions: | 5 |
| Mounting Type: | Panel Mount |
| Mounting Feature: | Flange |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | Neoprene |
| Ingress Protection: | Environment Resistant |
| Features: | - |
| Fastening Type: | Bayonet Lock |
| Detailed Description: | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Gold |
| Current Rating: | - |
| Contact Material: | Copper Alloy |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle, Male Pins |
| Color: | Black |
| Cable Opening: | - |
| Backshell Material, Plating: | - |
| Applications: | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Email: | info@cjjhk.com |
Introduce
We can supply PT02E-14-5P(025), use the request quote form to request PT02E-14-5P(025) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT02E-14-5P(025).The price and lead time for PT02E-14-5P(025) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT02E-14-5P(025).We look forward to working with you to establish long-term relations of cooperation
