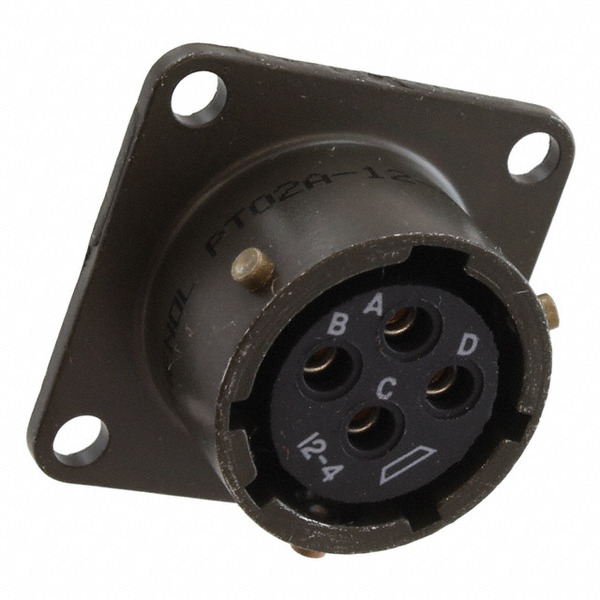

PT02A-12-4S
Amphenol Industrial
Images are for reference only.
See Product Specifications for product details.
Buy PT02A-12-4S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PT02A-12-4S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PT02A-12-4S |
|---|---|
| Manufacturer | Amphenol Industrial |
| Description | CONN RCPT FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $26.25 | $22.958 | $22.369 | $21.074 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $19.661 | $17.424 | $16.482 | $16.129 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder Cup |
| Shielding: | Unshielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | 12-4 |
| Shell Material: | Aluminum |
| Shell Finish: | Olive Drab Chromate over Cadmium |
| Series: | MIL-DTL-26482 Series I, PT |
| Packaging: | Bulk |
| Other Names: | PT02A124S U71-146212-04S |
| Orientation: | N (Normal) |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Positions: | 4 |
| Mounting Type: | Panel Mount |
| Mounting Feature: | Flange |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Insert Material: | Neoprene |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Bayonet Lock |
| Detailed Description: | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating: | - |
| Contact Material: | Copper Alloy |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle, Female Sockets |
| Color: | Olive Drab |
| Cable Opening: | - |
| Backshell Material, Plating: | - |
| Applications: | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Email: | info@cjjhk.com |
Introduce
We can supply PT02A-12-4S, use the request quote form to request PT02A-12-4S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT02A-12-4S.The price and lead time for PT02A-12-4S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT02A-12-4S.We look forward to working with you to establish long-term relations of cooperation
