PMPB47XP,115
Nexperia

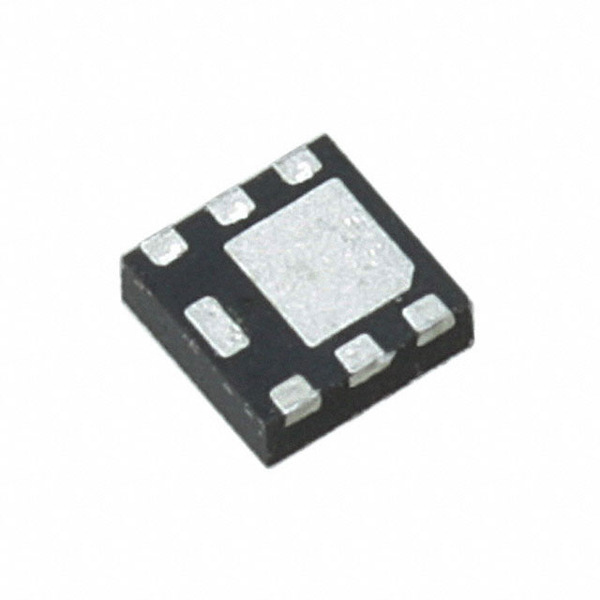

Images are for reference only.
See Product Specifications for product details.
Buy PMPB47XP,115 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PMPB47XP,115 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PMPB47XP,115 |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET P-CH 30V 4A 6DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.62 | $0.483 | $0.332 | $0.227 | $0.171 | |
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 900mV @ 250µA |
|---|---|
| Vgs (Max): | ±12V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | DFN2020MD-6 |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 58 mOhm @ 4A, 4.5V |
| Power Dissipation (Max): | 1.7W (Ta), 12.5W (Tc) |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 6-UDFN Exposed Pad |
| Other Names: | 1727-1375-1 568-10824-1 568-10824-1-ND |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 1365pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs: | 21nC @ 4.5V |
| FET Type: | P-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss): | 30V |
| Detailed Description: | P-Channel 30V 4A (Ta) 1.7W (Ta), 12.5W (Tc) Surface Mount DFN2020MD-6 |
| Current - Continuous Drain (Id) @ 25°C: | 4A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply PMPB47XP,115, use the request quote form to request PMPB47XP,115 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMPB47XP,115.The price and lead time for PMPB47XP,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMPB47XP,115.We look forward to working with you to establish long-term relations of cooperation
