PMEG3010AESBYL
Nexperia

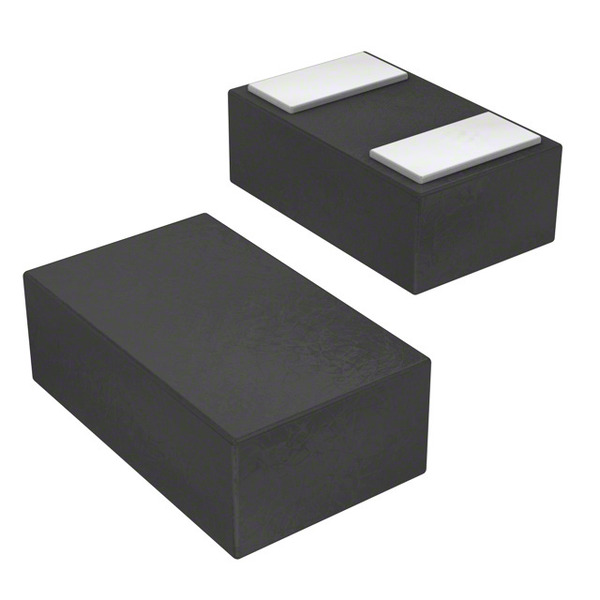

Images are for reference only.
See Product Specifications for product details.
Buy PMEG3010AESBYL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PMEG3010AESBYL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PMEG3010AESBYL |
|---|---|
| Manufacturer | Nexperia |
| Description | PMEG3010AESB 30 V, 1 A low VF MEGA Schottky barrier rectifier |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.085 | $0.077 | $0.069 | $0.068 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 480mV @ 1A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 30V |
| Supplier Device Package: | DSN1006-2 |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Reverse Recovery Time (trr): | 3.5ns |
| Packaging: | Original-Reel® |
| Package / Case: | 2-XDFN |
| Other Names: | 1727-2401-6 568-12700-6 568-12700-6-ND |
| Operating Temperature - Junction: | 150°C (Max) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 30V 1A Surface Mount DSN1006-2 |
| Current - Reverse Leakage @ Vr: | 255µA @ 20V |
| Current - Average Rectified (Io): | 1A |
| Capacitance @ Vr, F: | 86pF @ 1V, 1MHz |
| Email: | info@cjjhk.com |
Introduce
We can supply PMEG3010AESBYL, use the request quote form to request PMEG3010AESBYL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMEG3010AESBYL.The price and lead time for PMEG3010AESBYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMEG3010AESBYL.We look forward to working with you to establish long-term relations of cooperation
