PM20L-020-HHC3
NMB Technologies Corp.

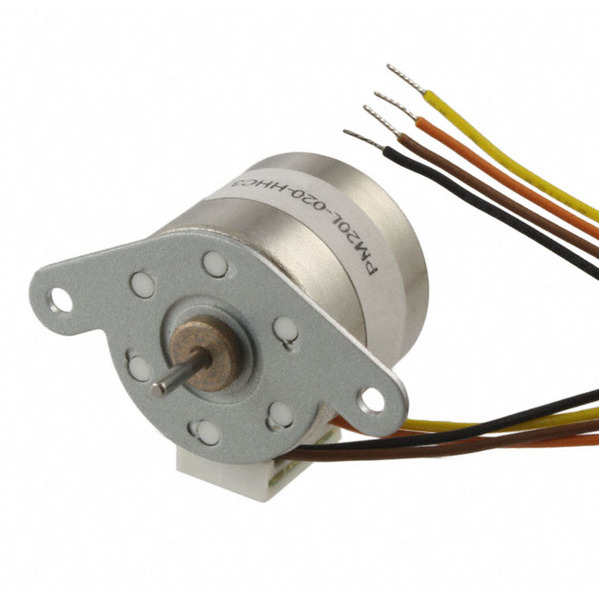

Images are for reference only.
See Product Specifications for product details.
Buy PM20L-020-HHC3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PM20L-020-HHC3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PM20L-020-HHC3 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEPPER MOTOR PM BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $33.33 | $32.32 | $30.30 | $29.29 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $28.28 | $27.27 | $26.866 | |||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Rated: | 24VDC |
| Type: | Permanent Magnet |
| Torque - Holding (oz-in / mNm): | 2.1 / 15 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 20 |
| Step Angle: | 18° |
| Size / Dimension: | Round - 0.787" Dia (20.00mm) |
| Series: | PM |
| Rotor Inertia: | - |
| Other Names: | P14337 PM20L-020-HHC3B PM20L020HHC3 |
| Operating Temperature: | - |
| Mounting Hole Spacing: | 1.100" (28.00mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Shaft and Bearing: | 0.315" (8.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Round Shaft |
| Diameter - Shaft: | 0.059" (1.50mm) |
| Detailed Description: | Bipolar Stepper Motor 400mA 24VDC |
| Current Rating: | 400mA |
| Coil Type: | Bipolar |
| Coil Resistance: | 13 Ohms |
| Approvals: | - |
| Accuracy: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PM20L-020-HHC3, use the request quote form to request PM20L-020-HHC3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PM20L-020-HHC3.The price and lead time for PM20L-020-HHC3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PM20L-020-HHC3.We look forward to working with you to establish long-term relations of cooperation
