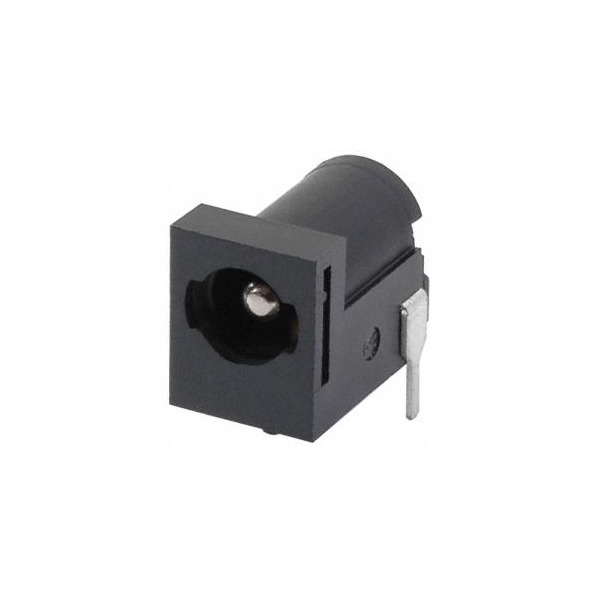

PJ-059B
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy PJ-059B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-059B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PJ-059B |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 2.5X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.87 | $0.765 | $0.72 | $0.69 | $0.66 | |
| 280 pcs | 560 pcs | 1120 pcs | 2520 pcs | ||
| $0.60 | $0.54 | $0.48 | $0.435 | ||
Specifications
Data sheet
| Voltage - Rated: | 24VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder |
| Shielding: | Unshielded |
| Series: | - |
| Packaging: | Tray |
| Other Names: | 045-1211R CP-059B PJ059B |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | 0.386" (9.80mm) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch, Normally Closed |
| Insulation Color: | - |
| Ingress Protection: | - |
| Industry Recognized Mating Diameter: | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes: | - |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Gender: | Male |
| Features: | Board Guide |
| Detailed Description: | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle |
| Current Rating: | 2.5A |
| Contact Material - Plating: | Tin |
| Contact Material: | Brass; Copper Alloy |
| Connector Type: | Jack |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.098" (2.50mm ID), 0.224" (5.70mm OD) |
| Email: | info@cjjhk.com |
Introduce
We can supply PJ-059B, use the request quote form to request PJ-059B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PJ-059B.The price and lead time for PJ-059B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PJ-059B.We look forward to working with you to establish long-term relations of cooperation
