PIP212-12M,518
NXP Semiconductors / Freescale

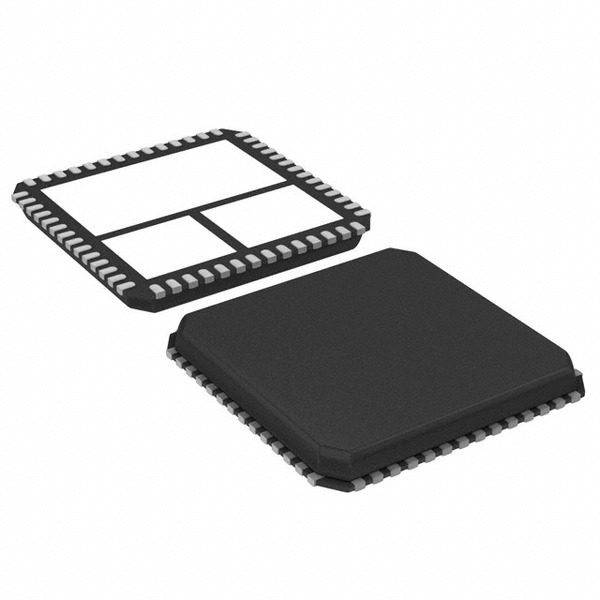

Images are for reference only.
See Product Specifications for product details.
Buy PIP212-12M,518 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PIP212-12M,518 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PIP212-12M,518 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | IC REG BUCK SYNC ADJ 35A 56HVQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply: | 3.3 V ~ 16 V |
|---|---|
| Voltage - Load: | 24V (Max) |
| Technology: | DrMOS |
| Supplier Device Package: | 56-HVQFN (8x8) |
| Series: | - |
| Rds On (Typ): | 1.9 mOhm LS, 6.5 mOhm HS |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 56-VFQFN Exposed Pad |
| Output Configuration: | Half Bridge |
| Other Names: | 568-3345-2 934059234518 PIP212-12M /T3 |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Features: | Bootstrap Circuit, 5V Regulated Output |
| Fault Protection: | Over Temperature, UVLO |
| Detailed Description: | Half Bridge Driver Synchronous Buck Converters DrMOS 56-HVQFN (8x8) |
| Current - Peak Output: | 60A |
| Current - Output / Channel: | 35A |
| Base Part Number: | PIP212-12M |
| Applications: | Synchronous Buck Converters |
| Email: | info@cjjhk.com |
Introduce
We can supply PIP212-12M,518, use the request quote form to request PIP212-12M,518 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PIP212-12M,518.The price and lead time for PIP212-12M,518 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PIP212-12M,518.We look forward to working with you to establish long-term relations of cooperation
