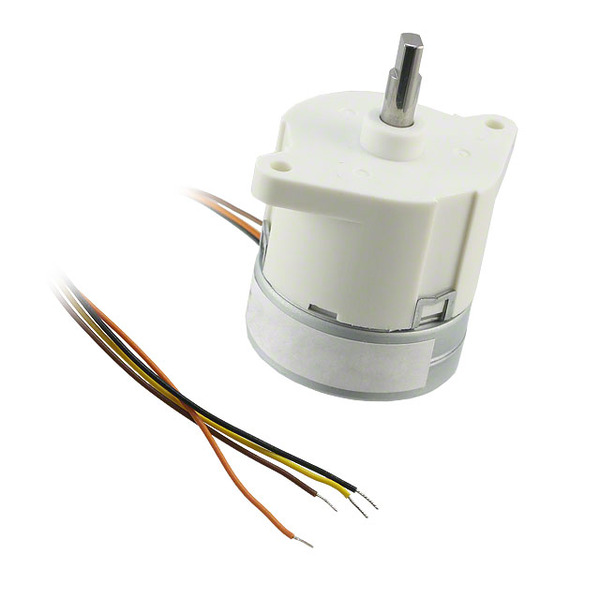

PG35S-D48-HHC2
NMB Technologies Corp.
Images are for reference only.
See Product Specifications for product details.
Buy PG35S-D48-HHC2 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PG35S-D48-HHC2 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PG35S-D48-HHC2 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR PM GEARED BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $36.61 | $35.982 | $35.35 | $34.719 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $34.088 | $33.583 | $32.825 | |||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Rated: | 24VDC |
| Type: | Permanent Magnet Gear Motor |
| Torque - Holding (oz-in / mNm): | 99.1 / 700 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 1698 |
| Step Angle: | 0.212° |
| Size / Dimension: | Round - 1.378" Dia (35.00mm) |
| Series: | PG |
| Rotor Inertia: | - |
| Other Names: | P14336 PG35S-D48-HHC2B PG35SD48HHC2 |
| Operating Temperature: | - |
| Mounting Hole Spacing: | 1.650" (42.00mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Shaft and Bearing: | 0.709" (18.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Double Flatted Shaft |
| Diameter - Shaft: | 0.197" (5.00mm) |
| Detailed Description: | Bipolar Stepper Motor 250mA 24VDC |
| Current Rating: | 250mA |
| Coil Type: | Bipolar |
| Coil Resistance: | 28 Ohms |
| Approvals: | - |
| Accuracy: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PG35S-D48-HHC2, use the request quote form to request PG35S-D48-HHC2 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PG35S-D48-HHC2.The price and lead time for PG35S-D48-HHC2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PG35S-D48-HHC2.We look forward to working with you to establish long-term relations of cooperation
