PFC2225BNP-801
Sumida Corporation

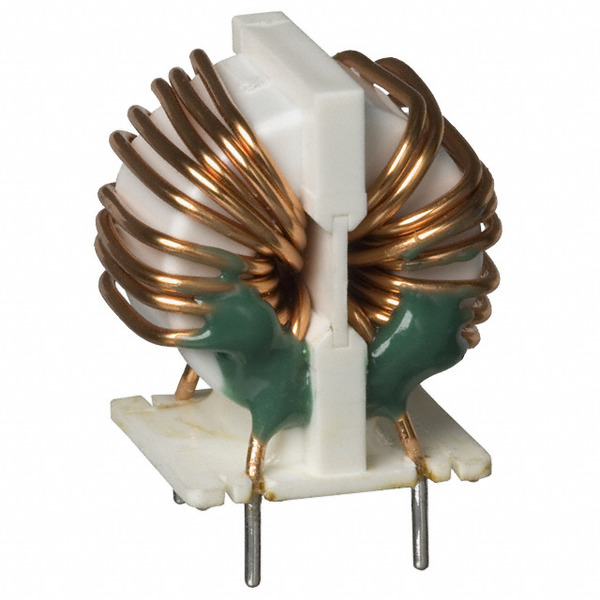

Images are for reference only.
See Product Specifications for product details.
Buy PFC2225BNP-801 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PFC2225BNP-801 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PFC2225BNP-801 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | CMC 800UH 8A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $2.625 | |||||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.984" L x 0.787" W (25.00mm x 20.00mm) |
| Series: | PFC |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Vertical, No Base, 4 PC Pin |
| Other Names: | 308-1405 PFC2225BNP-901 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 800µH @ 1kHz |
| Height (Max): | 1.063" (27.00mm) |
| Filter Type: | - |
| Features: | - |
| Detailed Description: | 800µH @ 1kHz 2 Line Common Mode Choke Through Hole 8A DCR 12.5 mOhm |
| DC Resistance (DCR) (Max): | 12.5 mOhm |
| Current Rating (Max): | 8A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PFC2225BNP-801, use the request quote form to request PFC2225BNP-801 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PFC2225BNP-801.The price and lead time for PFC2225BNP-801 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PFC2225BNP-801.We look forward to working with you to establish long-term relations of cooperation
