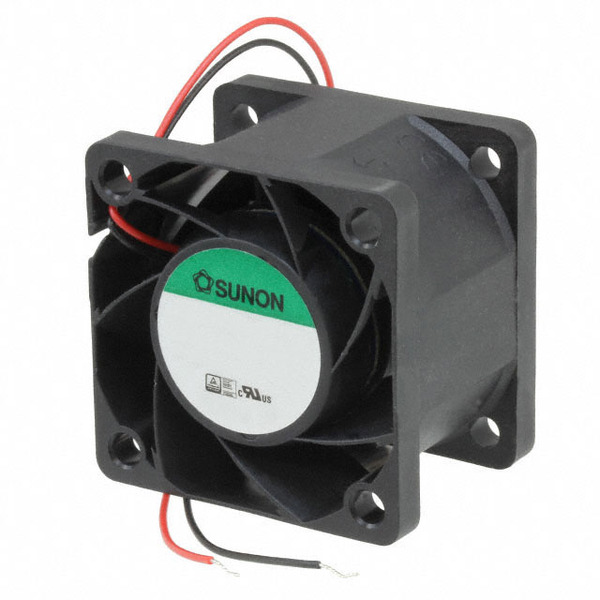

PF38281BX-000U-A99
Sunon
Images are for reference only.
See Product Specifications for product details.
Buy PF38281BX-000U-A99 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PF38281BX-000U-A99 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PF38281BX-000U-A99 |
|---|---|
| Manufacturer | Sunon |
| Description | FAN AXIAL 38X28MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 30 pcs | ||||
|---|---|---|---|---|---|
| $14.181 | |||||
Specifications
Data sheet
| Width: | 28.00mm |
|---|---|
| Weight: | 0.088 lb (39.92g) |
| Voltage Range: | 6.5 ~ 13.2VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 2.230 in H2O (555.5 Pa) |
| Size / Dimension: | Square - 38mm L x 38mm H |
| Series: | PF |
| RPM: | 20000 RPM |
| Power (Watts): | 6.24W |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 59.0 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lifetime @ Temp.: | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | Auto Restart |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.520A |
| Bearing Type: | Ball |
| Approvals: | CE, CUR, TUV, UL |
| Air Flow: | 23.0 CFM (0.644m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply PF38281BX-000U-A99, use the request quote form to request PF38281BX-000U-A99 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PF38281BX-000U-A99.The price and lead time for PF38281BX-000U-A99 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PF38281BX-000U-A99.We look forward to working with you to establish long-term relations of cooperation
