PEC06SADN
Sullins Connector Solutions

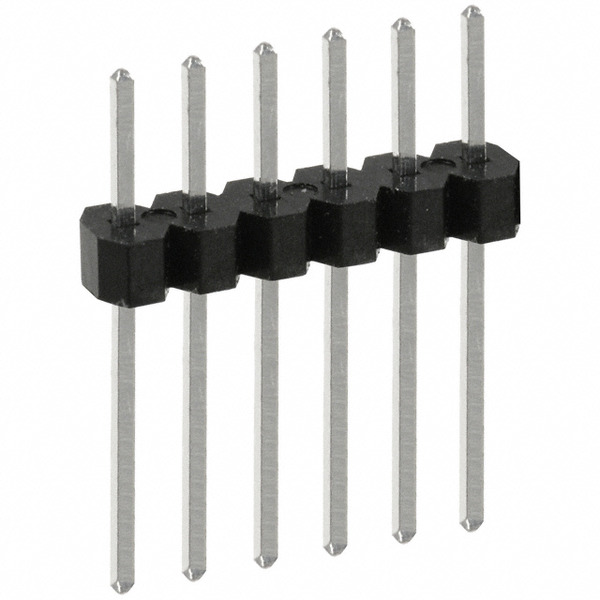

Images are for reference only.
See Product Specifications for product details.
Buy PEC06SADN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PEC06SADN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PEC06SADN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100 SINGL STR 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.96 | $0.859 | $0.708 | $0.559 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.48 | $0.438 | $0.421 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | - |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.750" (19.05mm) |
| Other Names: | S1042E-06 |
| Operating Temperature: | -65°C ~ 125°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 6 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT) |
| Insulation Height: | 0.100" (2.54mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.420" (10.67mm) |
| Contact Length - Mating: | 0.230" (5.84mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header, Breakaway |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PEC06SADN, use the request quote form to request PEC06SADN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PEC06SADN.The price and lead time for PEC06SADN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PEC06SADN.We look forward to working with you to establish long-term relations of cooperation
