PE42020A-X
Peregrine Semiconductor

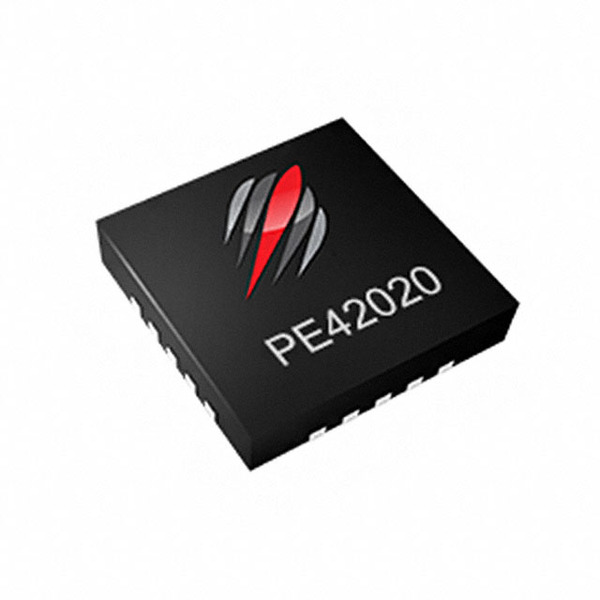

Images are for reference only.
See Product Specifications for product details.
Buy PE42020A-X with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PE42020A-X with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PE42020A-X |
|---|---|
| Manufacturer | pSemi |
| Description | UltraCMOS? True DC RF Switch, SPDT, 0 Hz to 8000 MHz, .6 to 1.1 dB IL, 34 to 56 dB Isolation |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $23.73 | $21.42 | $19.32 | $18.90 | ||
Specifications
Data sheet
| Voltage - Supply: | 10 V ~ 17 V |
|---|---|
| Topology: | Absorptive |
| Test Frequency: | 6GHz |
| Supplier Device Package: | 20-QFN (4x4) |
| Series: | UltraCMOS® |
| RF Type: | - |
| Packaging: | Original-Reel® |
| Package / Case: | 20-VFQFN Exposed Pad |
| P1dB: | 38dBm |
| Other Names: | 1046-1126-6 |
| Operating Temperature: | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Isolation: | 42dB |
| Insertion Loss: | 1.1dB |
| Impedance: | 50 Ohm |
| IIP3: | 62dBm |
| Frequency Range: | 0Hz ~ 8GHz |
| Features: | - |
| Detailed Description: | RF Switch IC SPDT 8GHz 50 Ohm 20-QFN (4x4) |
| Circuit: | SPDT |
| Email: | info@cjjhk.com |
Introduce
We can supply PE42020A-X, use the request quote form to request PE42020A-X pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PE42020A-X.The price and lead time for PE42020A-X depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PE42020A-X.We look forward to working with you to establish long-term relations of cooperation
