PE-67200NL
Pulse Electronics Corporation

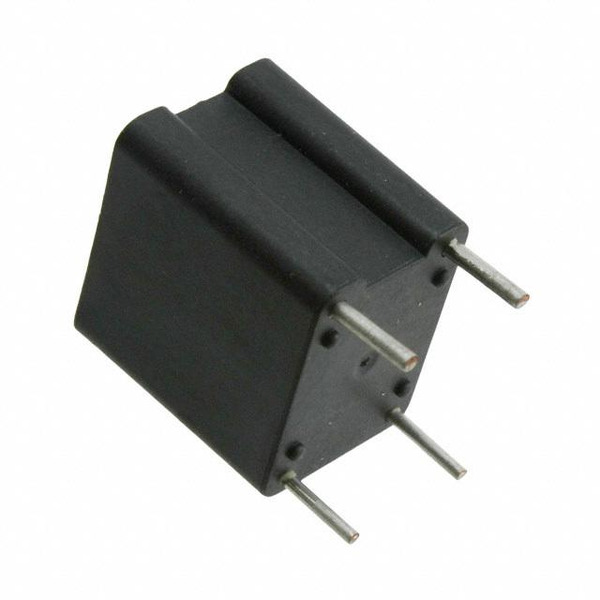

Images are for reference only.
See Product Specifications for product details.
Buy PE-67200NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PE-67200NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PE-67200NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 38A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $5.20 | $3.95 | $3.846 | $3.534 | ||
| 160 pcs | 320 pcs | 560 pcs | 1040 pcs | ||
| $3.326 | $3.222 | $3.119 | $3.015 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.565" L x 0.750" W (14.35mm x 19.05mm) |
| Series: | - |
| Ratings: | - |
| Packaging: | Tray |
| Other Names: | 553-1554 PE-67200NL-ND PE67200NL |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 80mH |
| Height - Seated (Max): | 0.750" (19.05mm) |
| Frequency Range: | 10kHz ~ 200kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 38A Current Sense Transformer 10kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole |
| DC Resistance (DCR): | 200 Ohm Primary, 4.5 Ohm Secondary |
| Current Ratio: | 200:1 |
| Current Rating: | 38A |
| Email: | info@cjjhk.com |
Introduce
We can supply PE-67200NL, use the request quote form to request PE-67200NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PE-67200NL.The price and lead time for PE-67200NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PE-67200NL.We look forward to working with you to establish long-term relations of cooperation
